flow3xMNPC E3

基本信息

• 产品线: flow3xMNPC E3
• 产品状态: Engineering Sample
• 标准包装数量: 40

电气特性

• 电压: 1200 V
• 电流: 150 A

Three-level MNPC (T-Type)

• Kelvin Emitter for improved switching performance
• Temperature sensor
• Three-phase Mixed Voltage Neutral Point Clamped Topology (T-Type)

芯片与隔离特性

IGBT7 H7

• High speed switching
• Low collector emitter saturation voltage
• Low turn-off losses
• Optimized for hard switching topologies
• Positive temperature coefficient

隔离

• 基础隔离: Al₂O₃

机械与封装特性

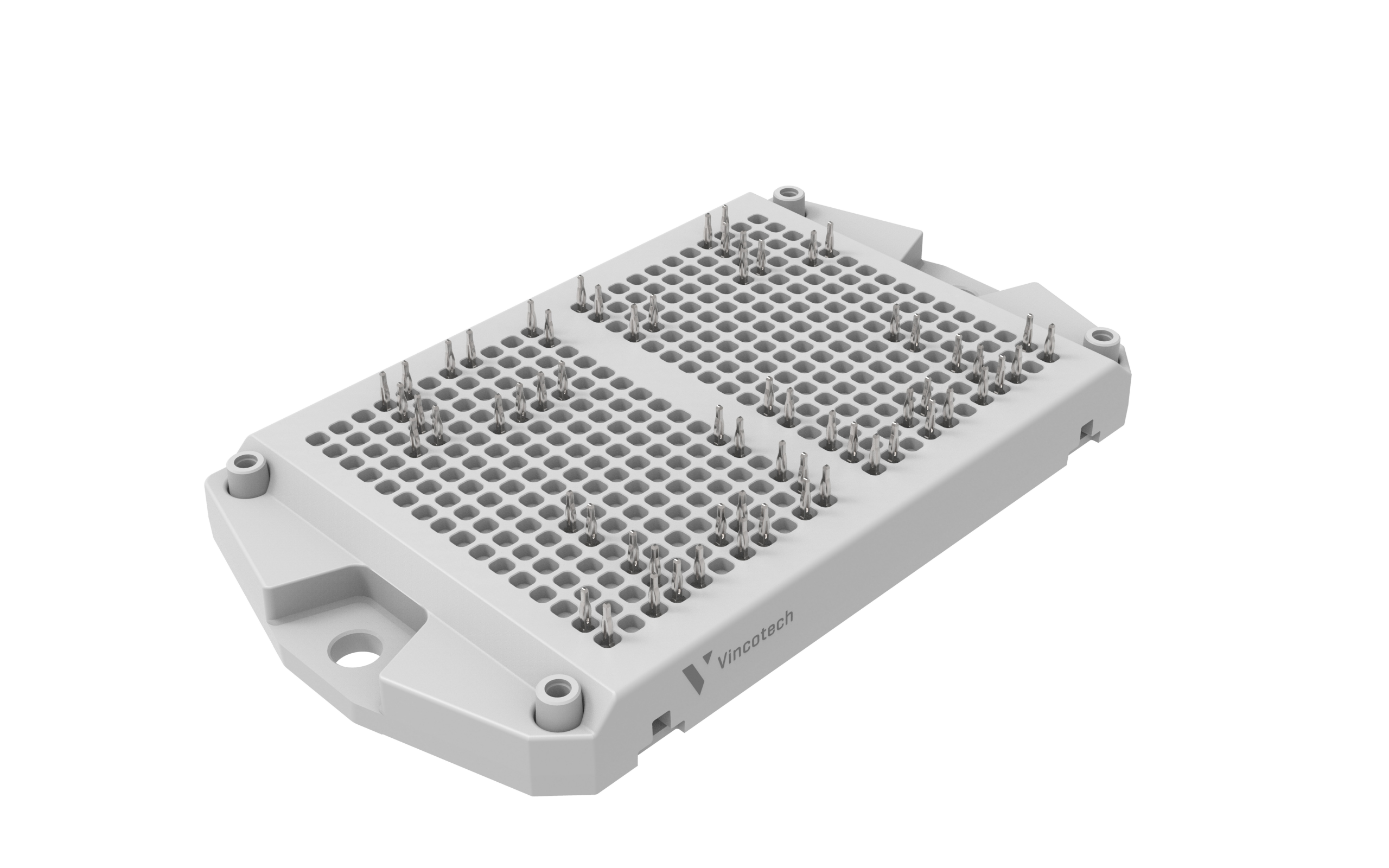

flow E3

• PCB机械连接方式: 4 towers
• 封装尺寸: 109.9 mm x 62 mm
• 高度: 12 mm
• 引脚类型: Press-fit pin
