VINcoNPC X8
70-W424NIA800M7-M800F70
拓扑结构 封装 电压 电流 主芯片技术 产品状态
Three-level NPC (I-Type) VINco X8 1200 V 800 A IGBT M7 Series
产品描述
基本信息
- 产品线: VINcoNPC X8
- 产品状态: Series
- 标准包装数量: 4
电气特性
- 电压: 1200 V
- 电流: 800 A
- Neutral Point Clamped Topology (I-Type)
- Kelvin Emitter for improved switching performance
- Optional snubber diode for switching loss reduction with asymmetrical inductance feature
- Temperature sensor

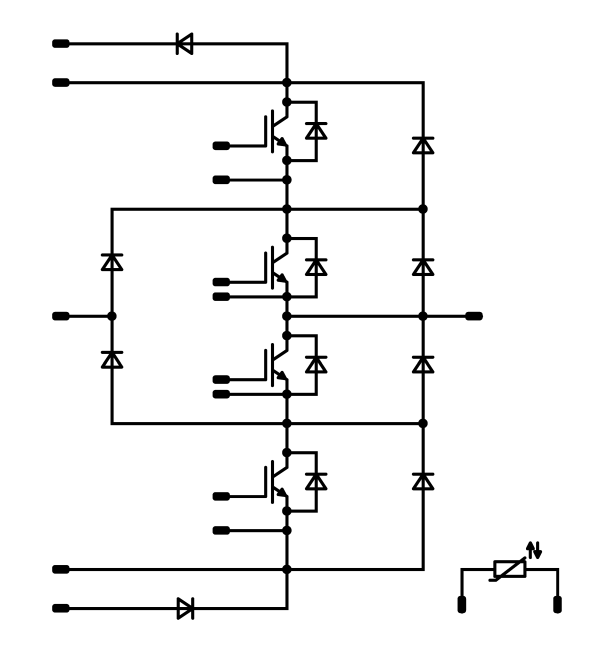

Three-level NPC (I-Type)
芯片与隔离特性
- Easy paralleling
- Low turn-off losses
- Low collector emitter saturation voltage
- Positive temperature coefficient
- Short tail current
- Switching optimized for EMC
IGBT M7
- 基础隔离: Al2O3
隔离

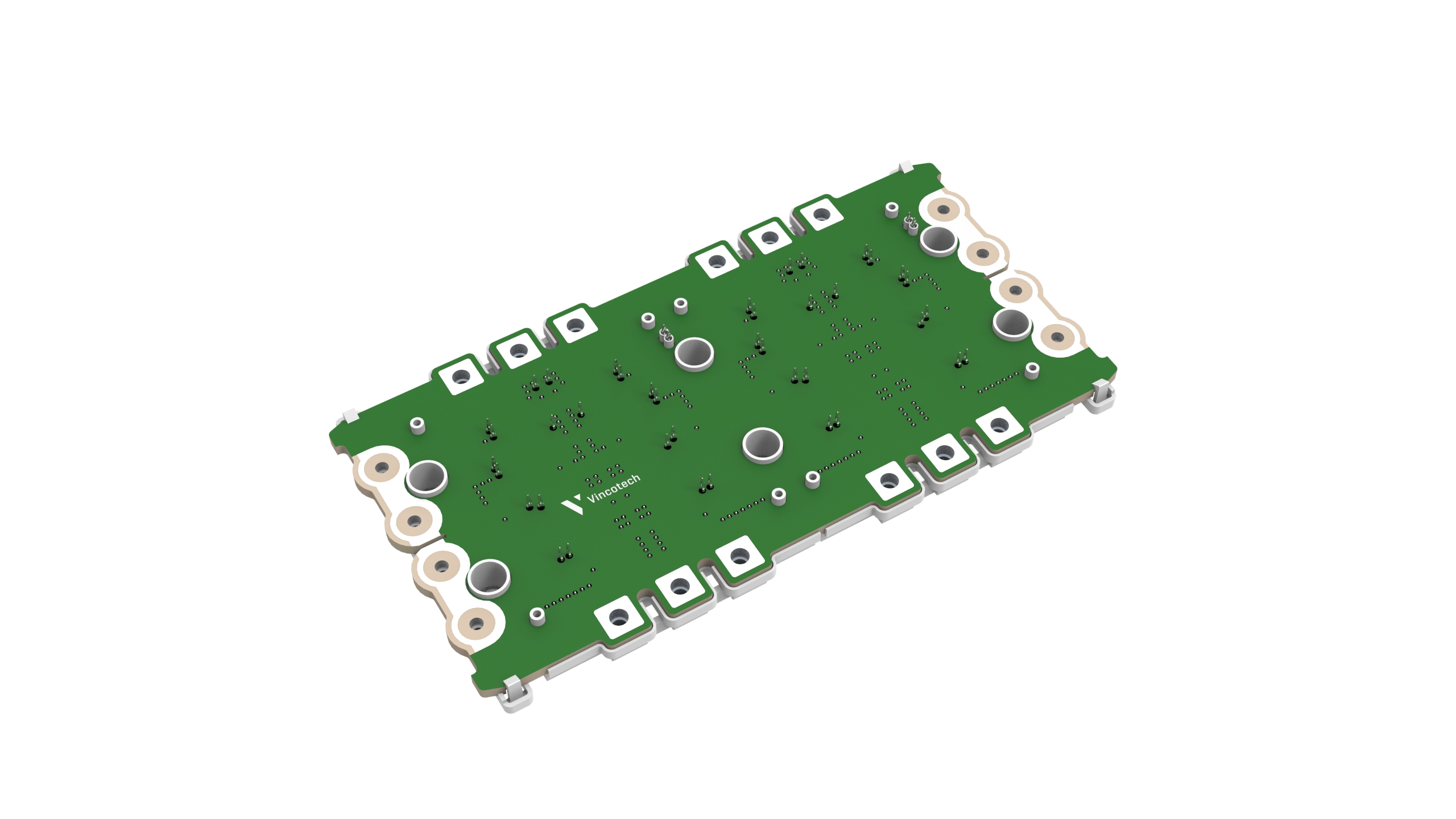

机械与封装特性
- 封装尺寸: 242.5 mm x 129.2 mm
- 引脚类型: Screw terminals
VINco X8
