flowPACK 0 SiC

基本信息

• 产品线: flowPACK 0 SiC
• 产品状态: Engineering Sample
• 标准包装数量: 135

电气特性

• 电压: 1200 V
• 电流: 25 A
• R(DS)on: 75 mOhm

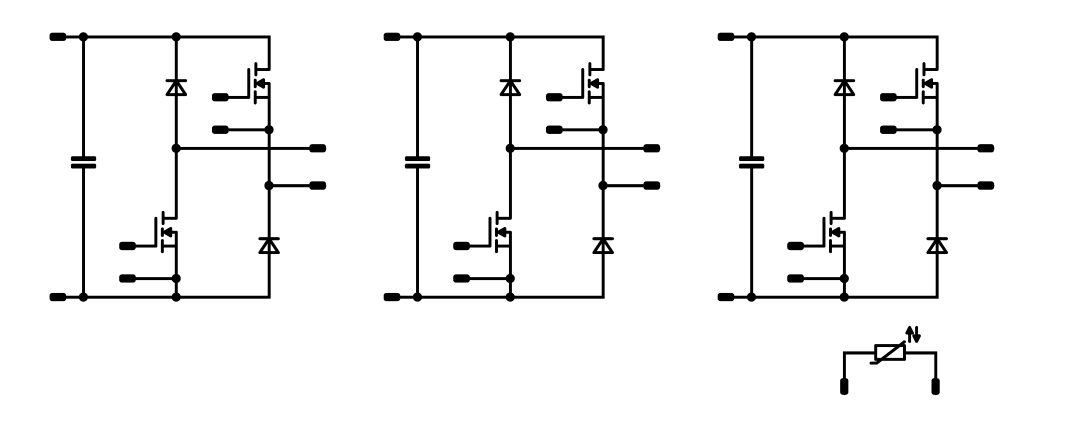

Sixpack

• 3xHalf Bridge
• Open Emitter configuration
• Kelvin Emitter for improved switching performance
• Integrated DC capacitor
• Split output for transient deactivation of the body diode and elimination of X-conduction at fast turn-on
• Temperature sensor

芯片与隔离特性

SiC MOSFET

• High Blocking Voltage with low drain source on state resistance
• High speed SiC-MOSFET technology
• Resistant to Latch-up

隔离

• 基础隔离: Al₂O₃

机械与封装特性

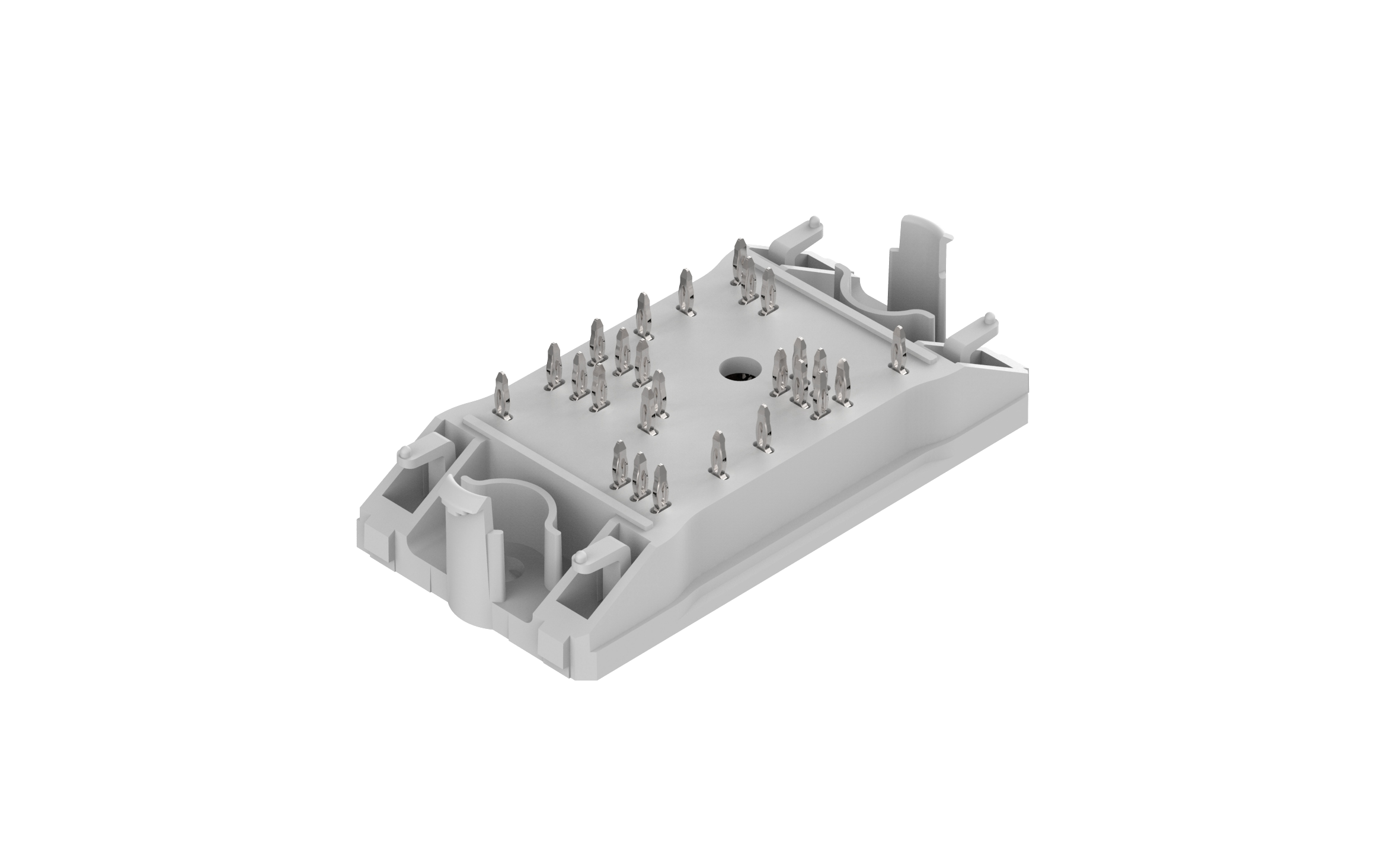

flow 0

• PCB机械连接方式: 2 clips
• 封装尺寸: 68.4 mm x 32.5 mm
• 高度: 12 mm
• 引脚类型: Press-fit pin
