flowPFC 0 CD

基本信息

• 产品线: flowPFC 0 CD
• 产品状态: Series
• 标准包装数量: 135

电气特性

• 电压: 650 V
• 电流: 50 A

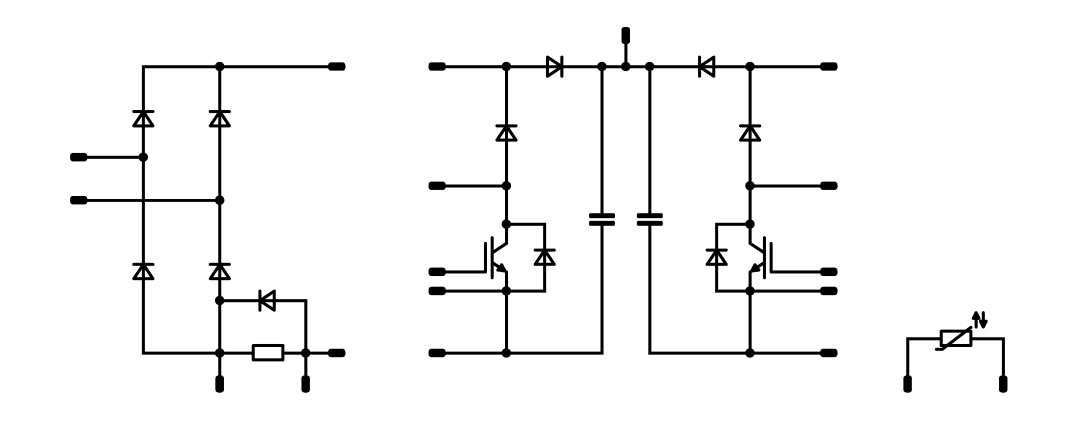

PFC (Single-phase applications)

• Dual Boost PFC
• Current sense interface in the collector with low inductive bypass diode
• Integrated Shunt Resistor with protection Diode
• Integrated DC capacitor
• Temperature sensor

芯片与隔离特性

IGBT H5

• High efficiency in hard switching and resonant topologies
• High speed switching
• Low gate charge

隔离

• 基础隔离: Al₂O₃

机械与封装特性

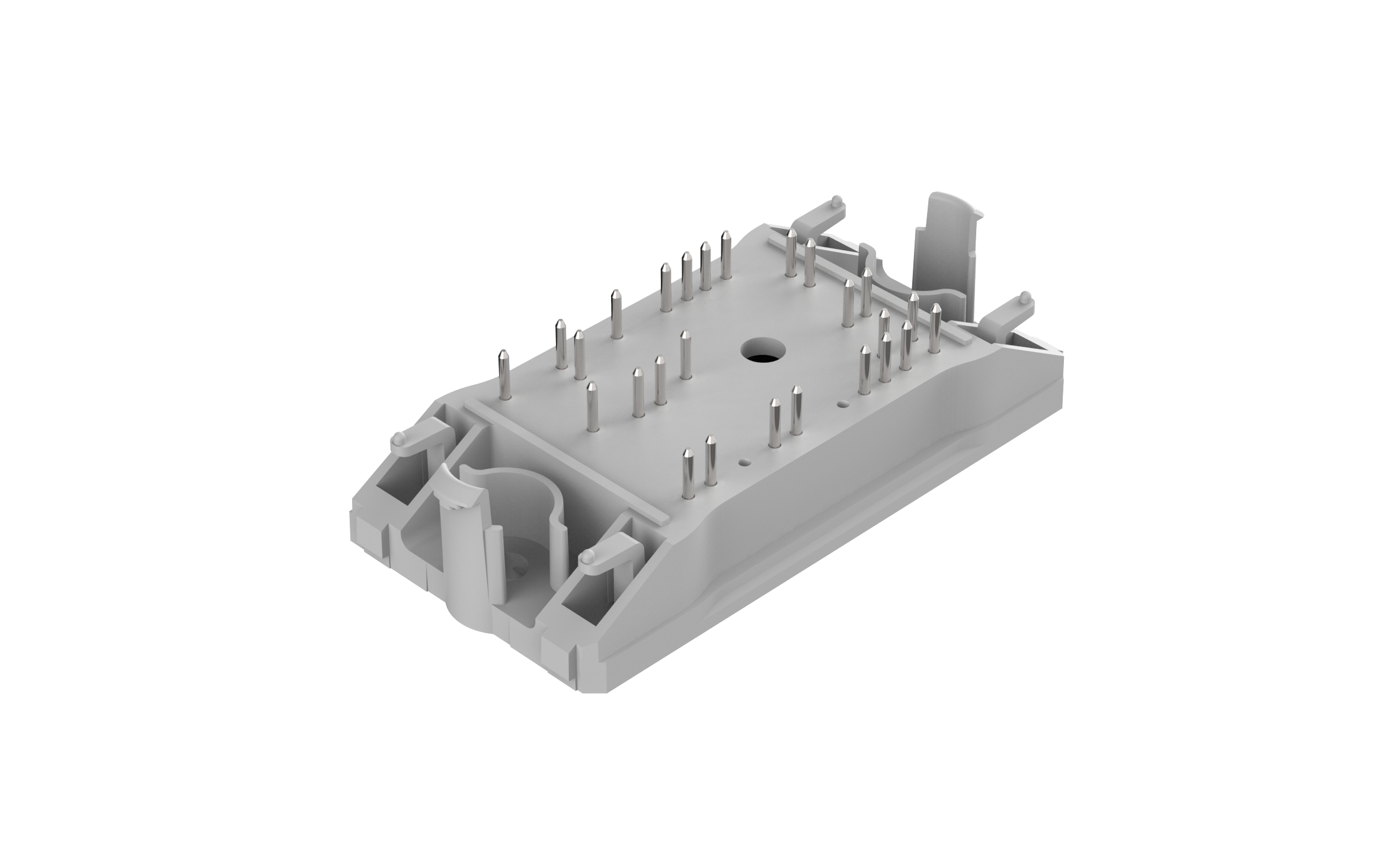

flow 0

• PCB机械连接方式: 2 clips
• 封装尺寸: 68.4 mm x 32.5 mm
• 高度: 12 mm
• 引脚类型: Solder pin
