flowRPI 1

基本信息

• 产品线: flowRPI 1
• 产品状态: Series
• 标准包装数量: 100

电气特性

• 电压: 600 V
• 电流: 20 A
• R(DS)on: 46 mOhm

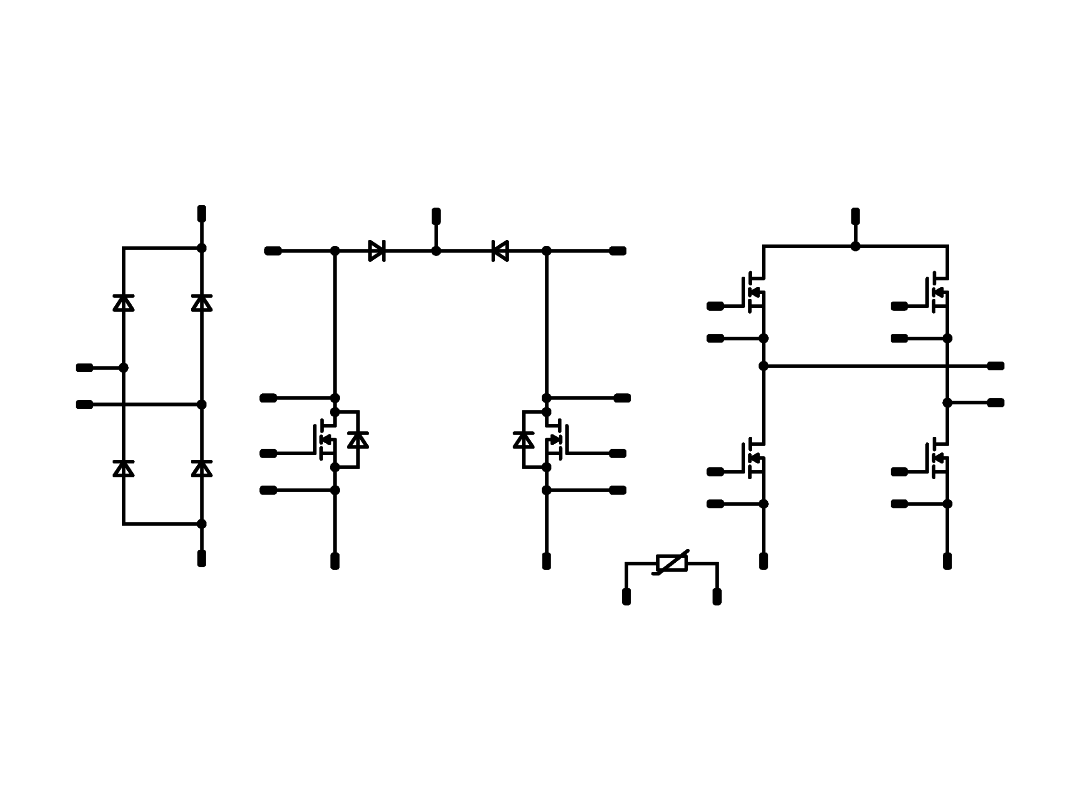

PFC (Single-phase applications) + H-Bridge

• Kelvin Emitter for improved switching performance
• Open Emitter configuration
• Rectifier + Dual Booster + H-Bridge
• Temperature sensor

芯片与隔离特性

Infineon CoolMOS CFD7

• Extremly low losses
• Ultra-fast body diode
• Improved reverse diode commutation ruggedness
• Recommended for soft switching applications

隔离

• 基础隔离: Al₂O₃

机械与封装特性

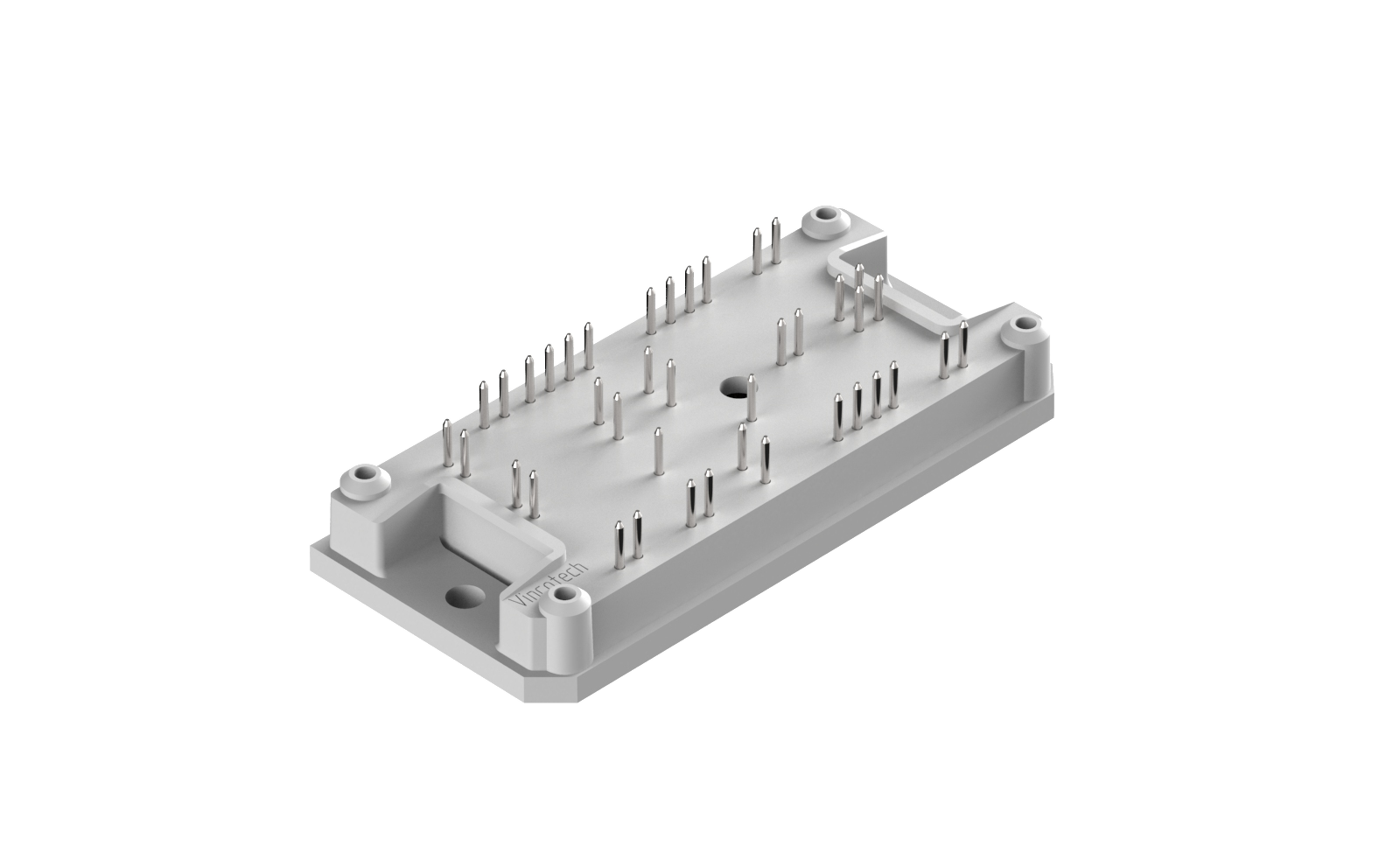

flow 1

• PCB机械连接方式: 4 towers
• 封装尺寸: 82 mm x 37.4 mm
• 高度: 12 mm
• 引脚类型: Solder pin
