flowMNPC E2 SiC

基本信息

• 产品线: flowMNPC E2 SiC
• 产品状态: Engineering Sample
• 标准包装数量: 100

电气特性

• 电压: 2300 V
• 电流: 200 A
• R(DS)on: 8 mOhm

Three-level MNPC (T-Type)

• Kelvin Emitter for improved switching performance
• Temperature sensor
• Mixed Voltage Neutral Point Clamped Topology (T-Type)
• Low inductive commutation loop
• SiC MOSFET

芯片与隔离特性

SiC MOSFET

• Fast intrinsic diode with low reverse recovery
• High blocking voltage with low on-resistance
• High speed switching with low capacitance

隔离

• 基础隔离: AlN

机械与封装特性

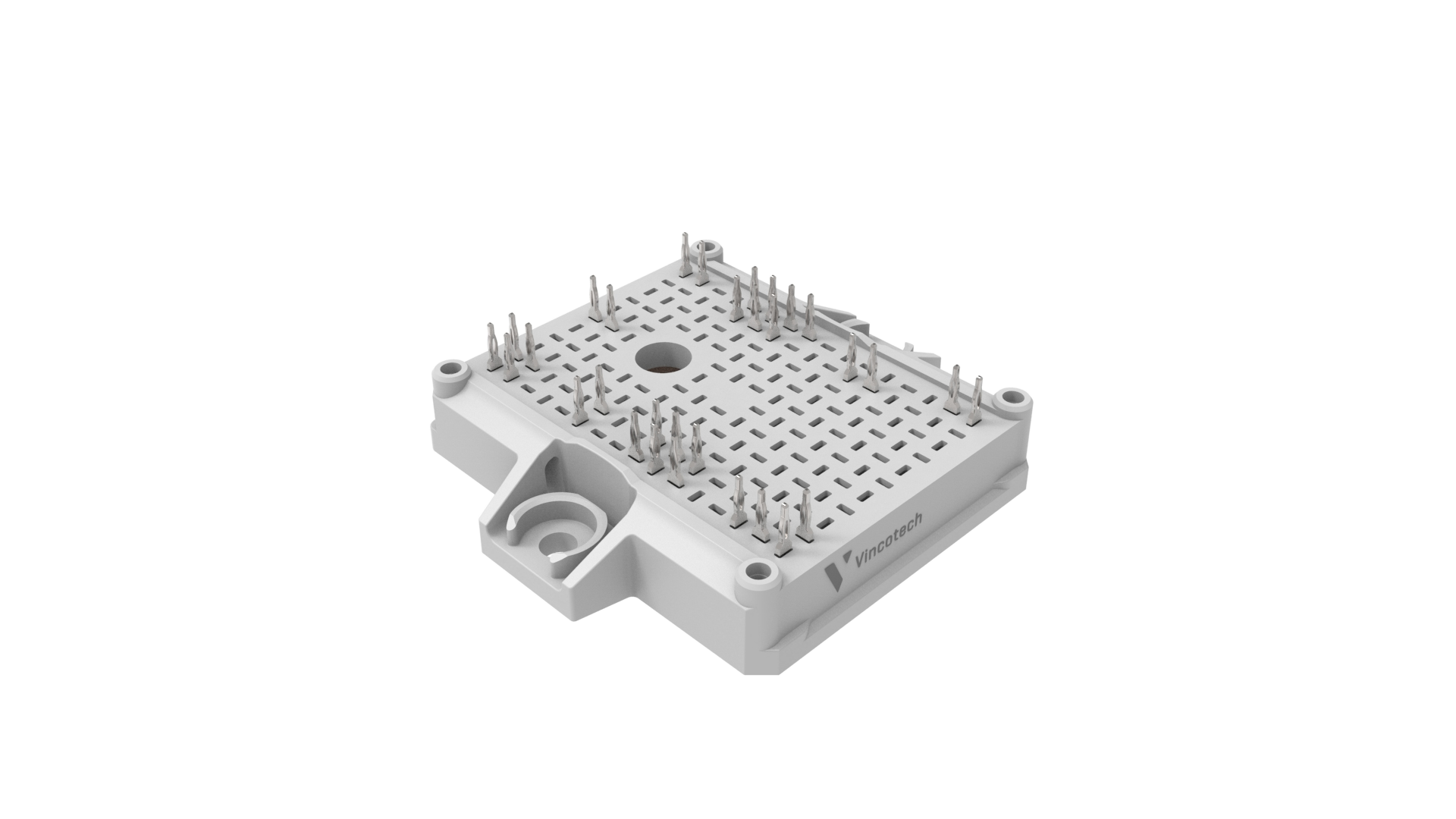

flow E2

• PCB机械连接方式: 4 towers
• 封装尺寸: 62.8 mm x 57.7 mm
• 高度: 12 mm
• 引脚类型: Press-fit pin
