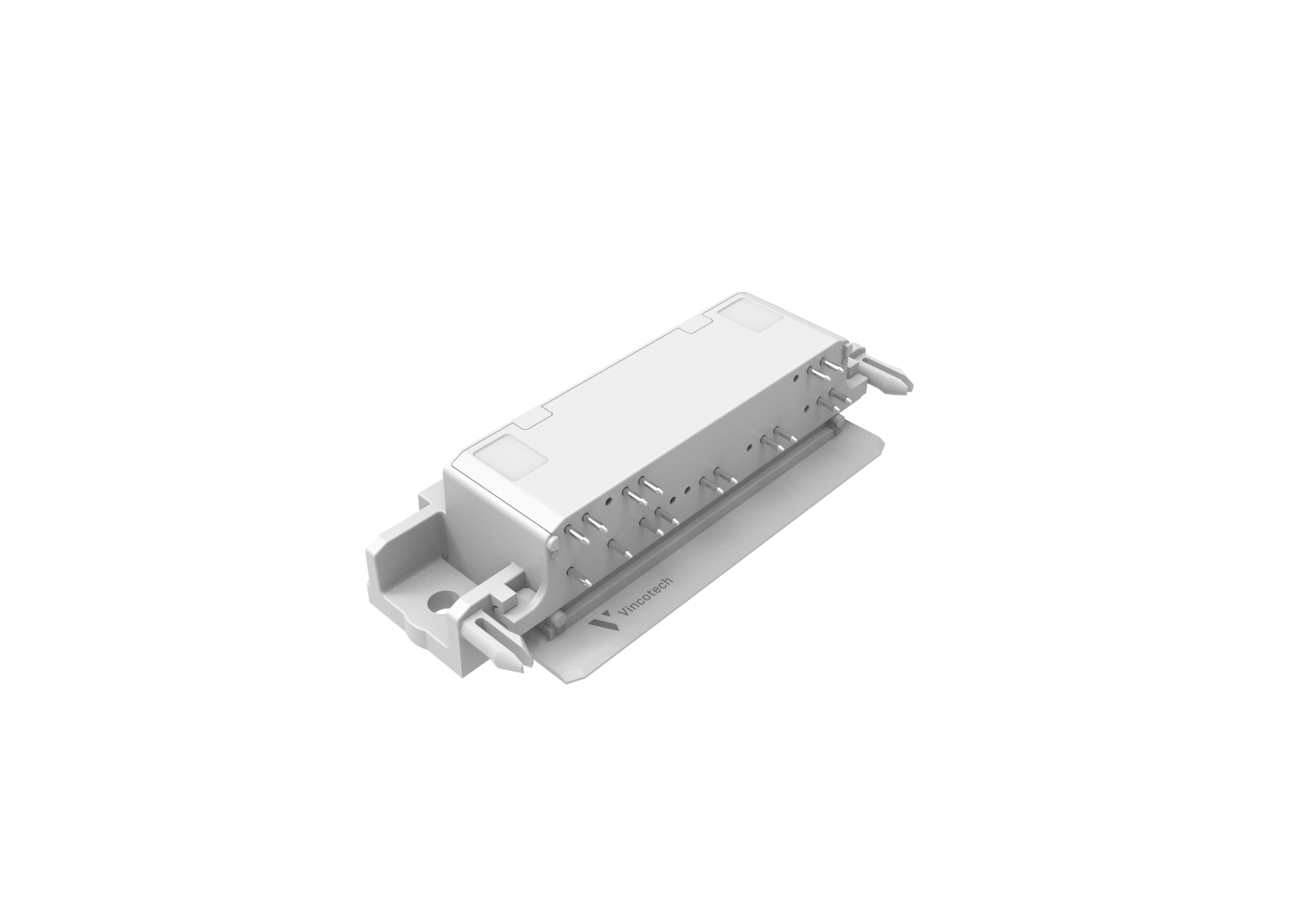

flow90CON 1

Basic information

• Product line: flow90CON 1
• Product status: Engineering Sample
• Standard packaging quantity (pieces): 80

Electrical characteristics

• Voltage: 1200 V
• Current: 100 A

Rectifier (+Brake)

• Three-phase Rectifier
• Brake Chopper
• Temperature sensor

Chip & isolation characteristics

IGBT4

• Easy paralleling
• Low turn-off losses
• Low collector emitter saturation voltage
• Positive temperature coefficient
• Short tail current

Isolation

• Base isolation: Al₂O₃

Mechanical & housing characteristics

flow 90 1

• Mechanical connection to PCB: 2 clips
• Footprint: 84 mm x 30.5 mm
• Pin type: Solder pin
