flow90CON 1

Basic information

• Product line: flow90CON 1
• Product status: Series-Ops
• Standard packaging quantity (pieces): 80

Electrical characteristics

• Voltage: 1600 V
• Current: 36 A

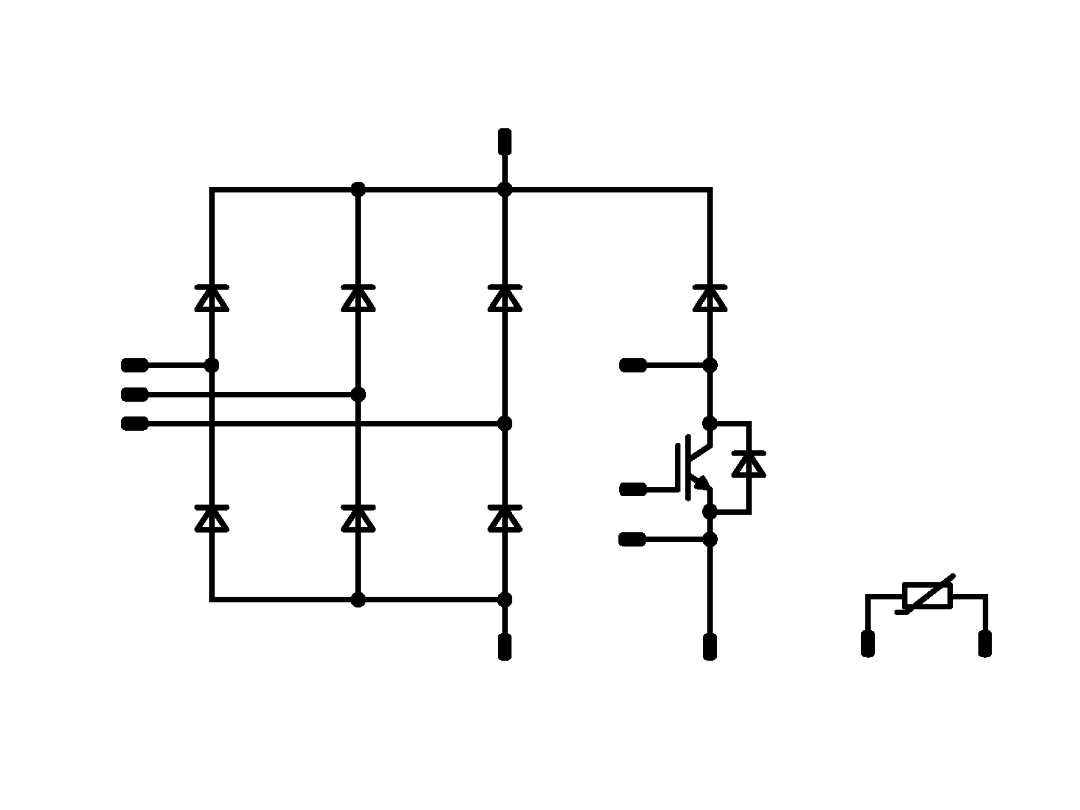

Rectifier (+Brake)

• Brake Chopper
• Brake sense
• Common rectifier and brake DC+
• Temperature sensor
• Three-phase Rectifier

Chip & isolation characteristics

Thyristor (SCR)

• High inrush current capability

Isolation

• Base isolation: Al₂O₃

Mechanical & housing characteristics

flow 90 1

• Mechanical connection to PCB: 2 clips
• Footprint: 84 mm x 30.5 mm
• Pin type: Solder pin
