flowPIM 1

Basic information

• Product line: flowPIM 1
• Product status: Series
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 1200 V
• Current: 35 A

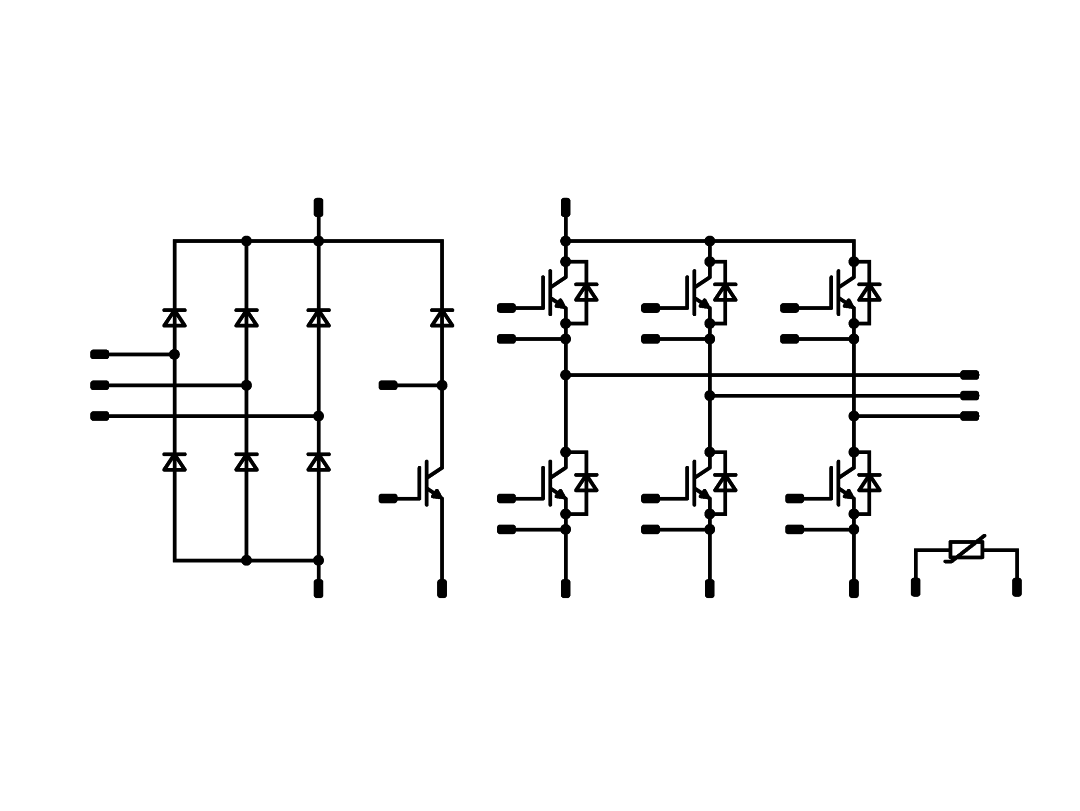

PIM (CIB)

• Kelvin Emitter for improved switching performance
• Open Emitter configuration
• Temperature sensor
• Converter+Brake+Inverter

Chip & isolation characteristics

IGBT4

• Easy paralleling
• Low turn-off losses
• Low collector emitter saturation voltage
• Positive temperature coefficient
• Short tail current

Isolation

• Base isolation: AlN

Mechanical & housing characteristics

flow 1

• Mechanical connection to PCB: 4 towers
• Footprint: 82 mm x 37.4 mm
• Height: 17 mm
• Pin type: Solder pin
