flow3xBUCK-BOOST S3
B0-SP10F3A100S7-LU49F08T
Topology Housing Voltage Current Main chip technology Product status
Three-level FC Inverter flow S3 950 V 100 A IGBT S7 PreSeries
Product description
Basic information
- Product line: flow3xBUCK-BOOST S3
- Product status: PreSeries
- Standard packaging quantity (pieces): 45
Electrical characteristics
- Voltage: 950 V
- Current: 100 A
- Kelvin Emitter for improved switching performance
- Temperature sensor

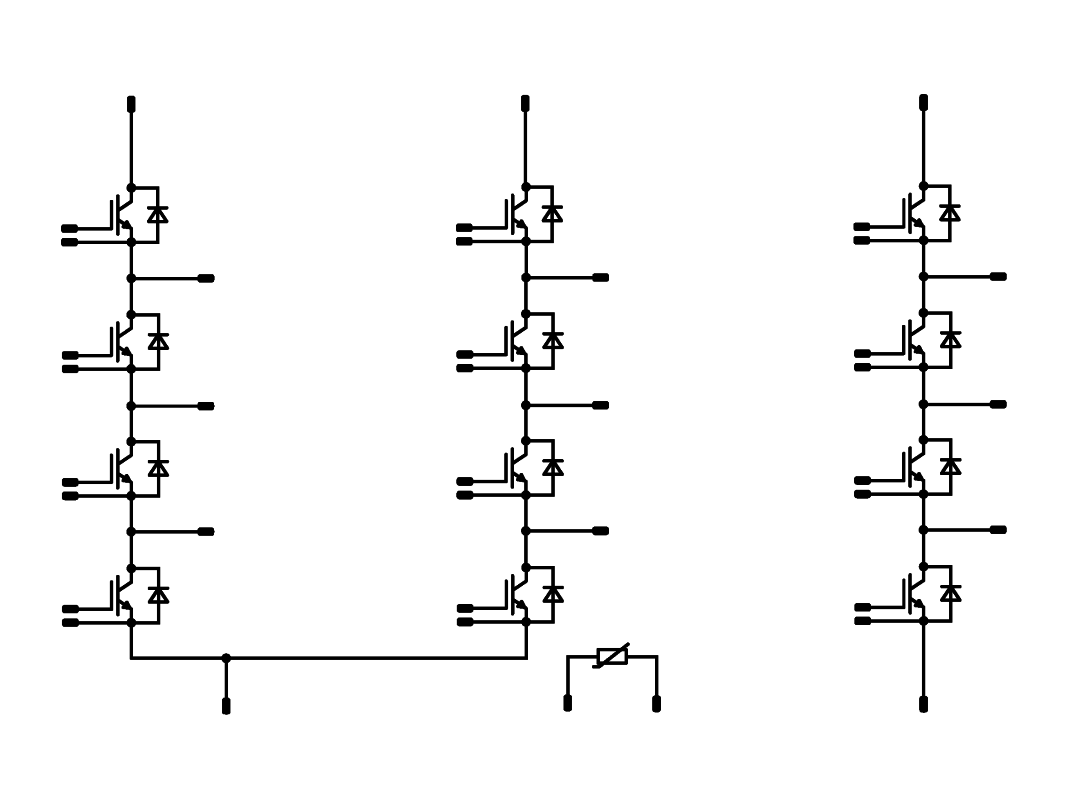

- 3ph Flying Cap inverter
- Triple Flying Cap Buck/Boost
Three-level FC Inverter
Chip & isolation characteristics
- Low collector emitter saturation voltage
- High speed and smooth switching
IGBT S7
- Base isolation: Al2O3
Isolation

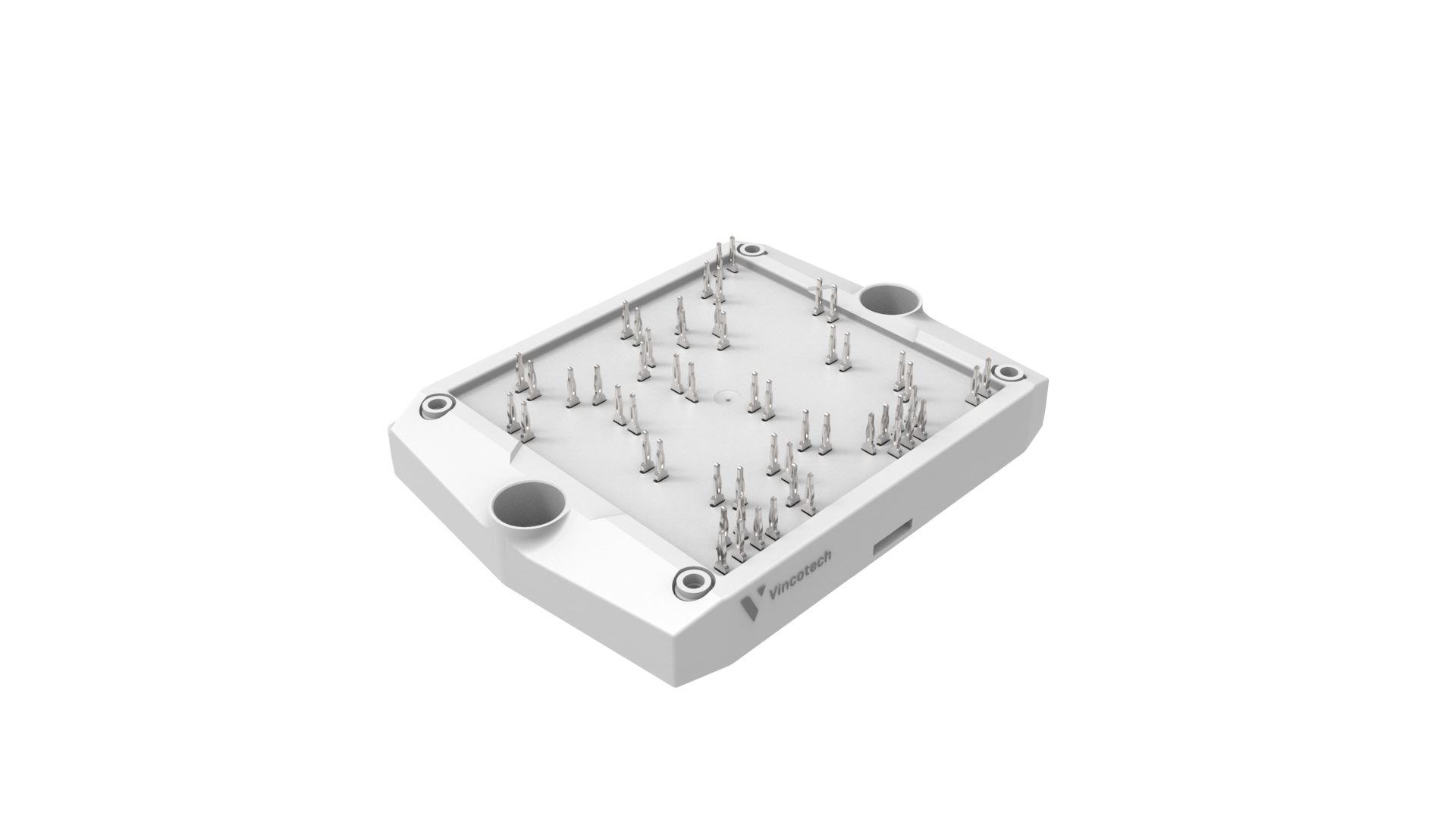

Mechanical & housing characteristics
- Mechanical connection to PCB: no towers
- Footprint: 81.8 mm x 61.3 mm
- Height: 12 mm
- Pin type: Press-fit pin
flow S3
