flowNPC S3
B0-SL10NIA300S704-LS78F98Z
Topology Housing Voltage Current Main chip technology Product status
Three-level NPC (I-Type) flow S3 950 V 300 A IGBT S7 Engineering Sample
Product description
Basic information
- Product line: flowNPC S3
- Product status: Engineering Sample
- Standard packaging quantity (pieces): 45
Electrical characteristics
- Voltage: 950 V
- Current: 300 A
- Kelvin Emitter for improved switching performance
- Temperature sensor
- Neutral Point Clamped Topology (I-Type)
Three-level NPC (I-Type)
Chip & isolation characteristics
- Low collector emitter saturation voltage
- High speed and smooth switching
IGBT S7
- Base isolation: Al2O3
Isolation
Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 81.8 mm x 61.3 mm
- Height: 12 mm
- Pin type: Solder pin

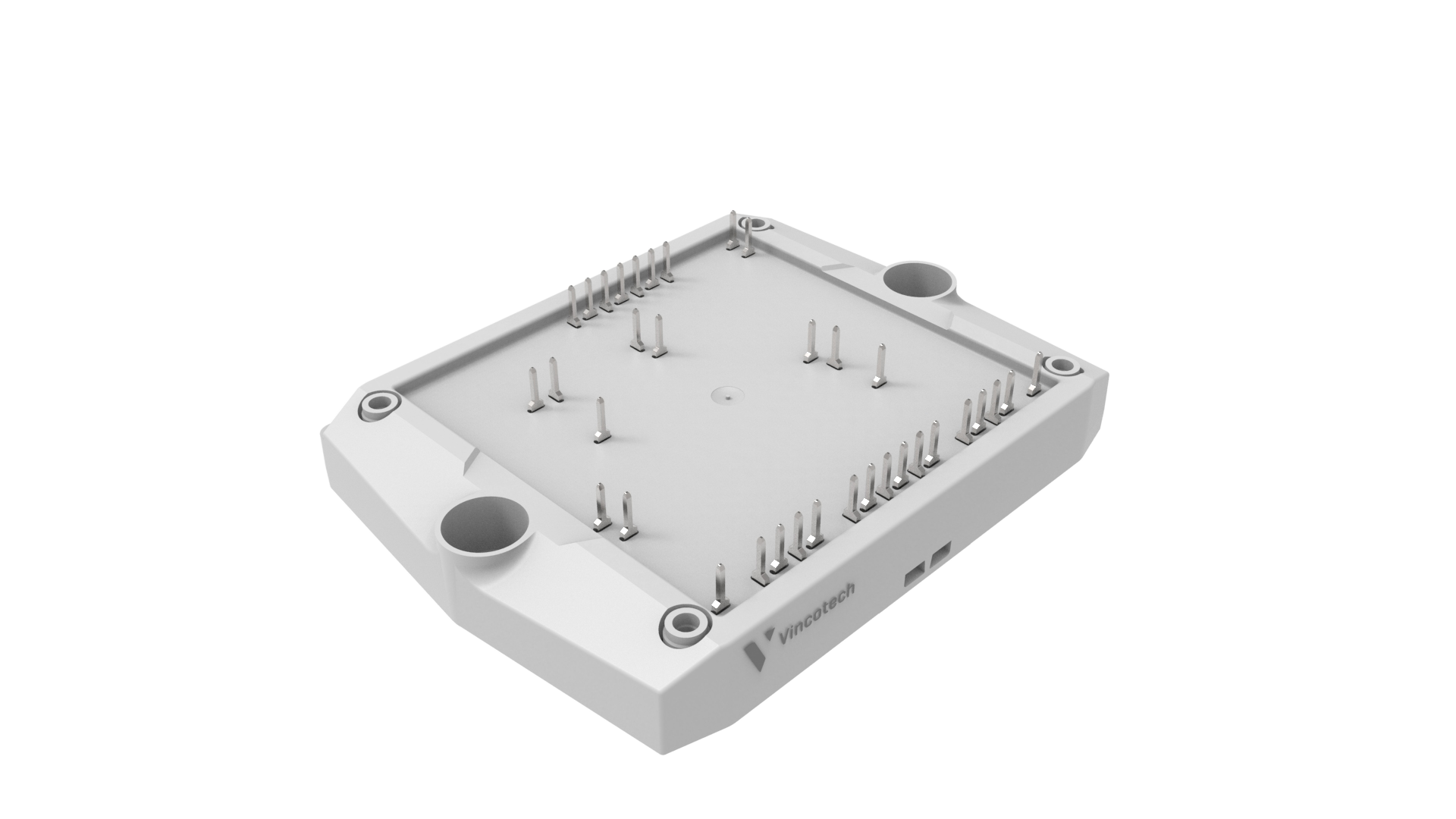

flow S3
