MiniSKiiP® PIM 2
80-M212PMA035M731-K220A72
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: MiniSKiiP® PIM 2
- Product status: Series-Ops
- Standard packaging quantity (pieces): 72
Electrical characteristics
- Voltage: 1200 V
- Current: 35 A

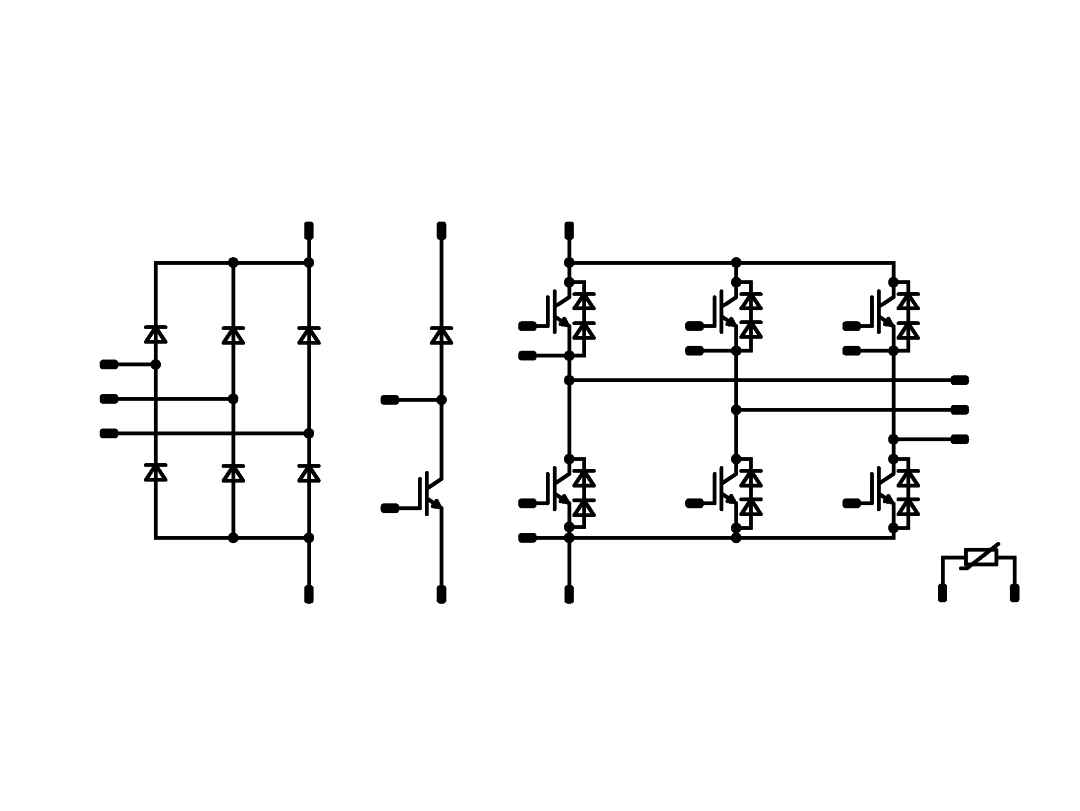

- Converter+Brake+Inverter
- High side Kelvin Emitter for improved switching performance
- Tandem diode
- Temperature sensor
PIM (CIB)
Chip & isolation characteristics
- Easy paralleling
- Low turn-off losses
- Low collector emitter saturation voltage
- Positive temperature coefficient
- Short tail current
- Switching optimized for EMC
IGBT M7
- Base isolation: Al2O3
Isolation
Mechanical & housing characteristics
- Footprint: 58.9 mm x 51.9 mm
- Height: 16 mm
- Pin type: Spring contact
MiniSKiiP® 2
Available options
| Thermal grease options | Thermal conductivity | Max. operation temperature | Lid options | Order code |
|---|---|---|---|---|
| Without thermal grease | - | - | Standard (6.5 mm) Thin (2.8 mm) | -/0A/ -/0B/ |
| Silicone-based standard grease - Wacker P12 | 0.81 W/(m·K) | 200 °C | Standard (6.5 mm) Thin (2.8 mm) | -/1A/ -/1B/ |
| Silicone-free standard grease – Thermigrease® TG20032 | 2.5 W/(m·K) | 208 °C | Standard (6.5 mm) Thin (2.8 mm) | -/4A/ -/4B/ |
| High performance thermal paste - HPTP (silicon-based) | 2.5 W/(m·K) | 180 °C | Standard (6.5 mm) Thin (2.8 mm) | -/5A/ -/5B/ |
Exemplary order number: 80-M212PMA035M731-K220A72-/5B/
Thermal documents
Skiip2-Al2O3-A038-/1/-02
TIM thickness
- Minimum: 60 um
- Maximum: 95 um
- Stencil thickness: 80 um
Skiip2-Al2O3-A038-/5/-02
TIM thickness
- Minimum: 70 um
- Maximum: 130 um
- Stencil thickness: 110 um
Skiip2-Al2O3-A038-/4/-02
TIM thickness
- Minimum: 65 um
- Maximum: 95 um
- Stencil thickness: 90 um
