flowANPC 2

Basic information

• Product line: flowANPC 2
• Product status: Series
• Standard packaging quantity (pieces): 36

Electrical characteristics

• Voltage: 950 V
• Current: 200 A

Three-level ANPC

• Temperature sensor
• Advanced Neutral Point Clamped topology

Chip & isolation characteristics

IGBT S7

• Low collector emitter saturation voltage
• High speed and smooth switching

Isolation

• Base isolation: Al₂O₃

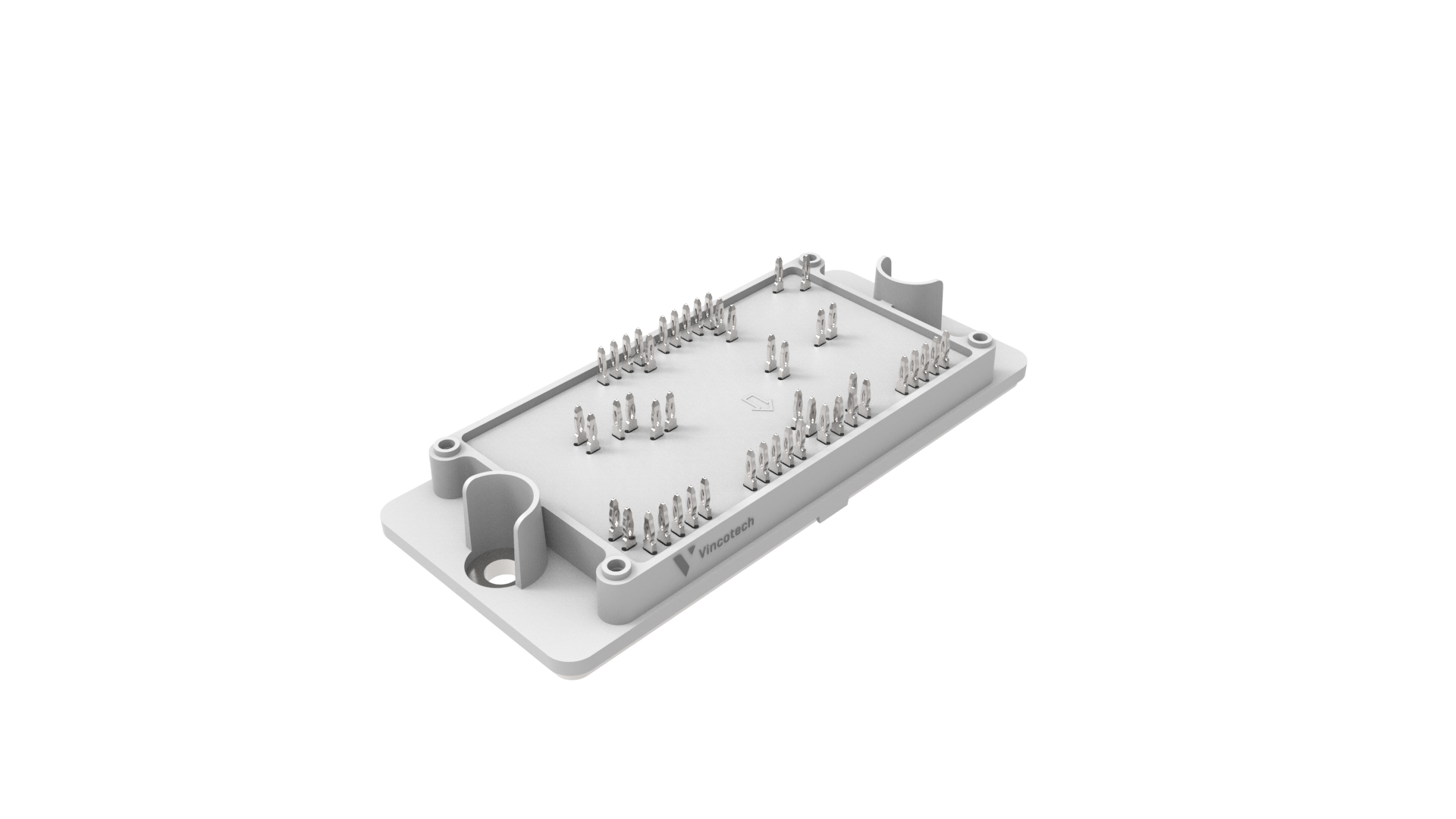

Mechanical & housing characteristics

flow 2

• Mechanical connection to PCB: 4 towers
• Footprint: 107.2 mm x 47 mm
• Height: 13 mm
• Pin type: Press-fit pin
