flowBOOST 2 dual
30-PT10B2A200S706-PA79L98Y
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowBOOST 2 dual
- Product status: PreSeries
- Standard packaging quantity (pieces): 36
Electrical characteristics
- Voltage: 950 V
- Current: 200 A
- Integrated DC capacitor
- Integrated FC Capacitor
- Kelvin Emitter for improved switching performance
- Temperature sensor

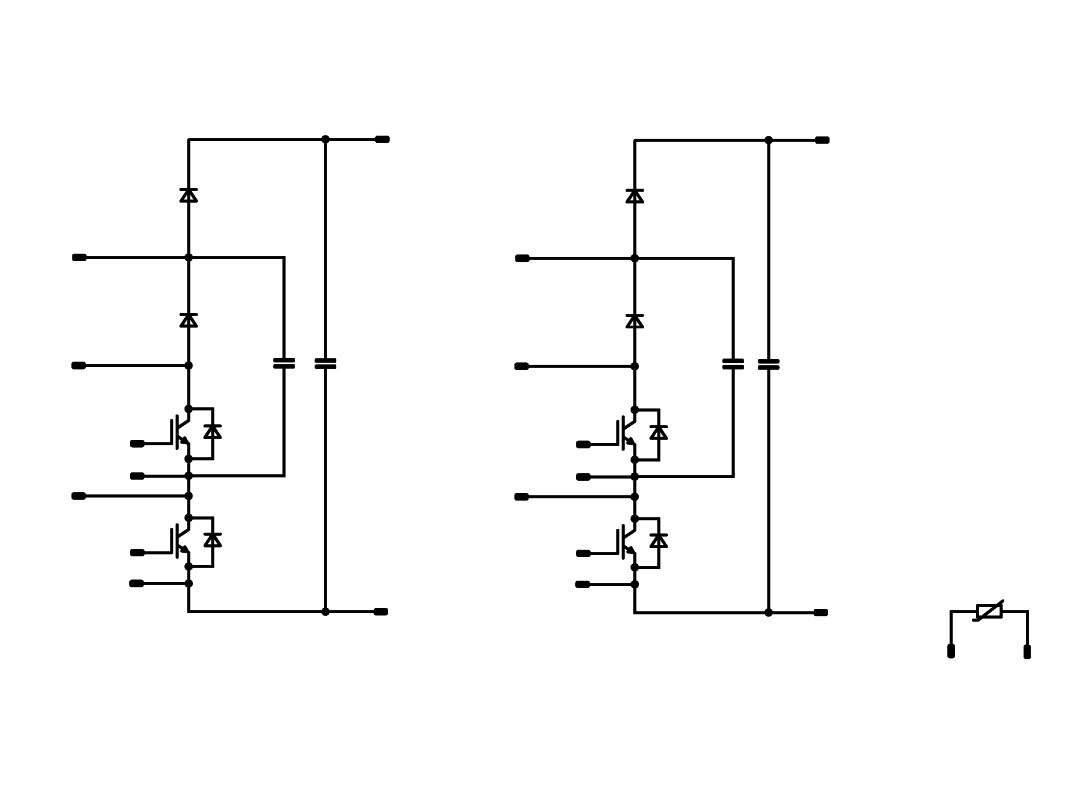

Three-level FC Booster
Chip & isolation characteristics
- Low collector emitter saturation voltage
- High speed and smooth switching
IGBT S7
- Base isolation: Al2O3
Isolation

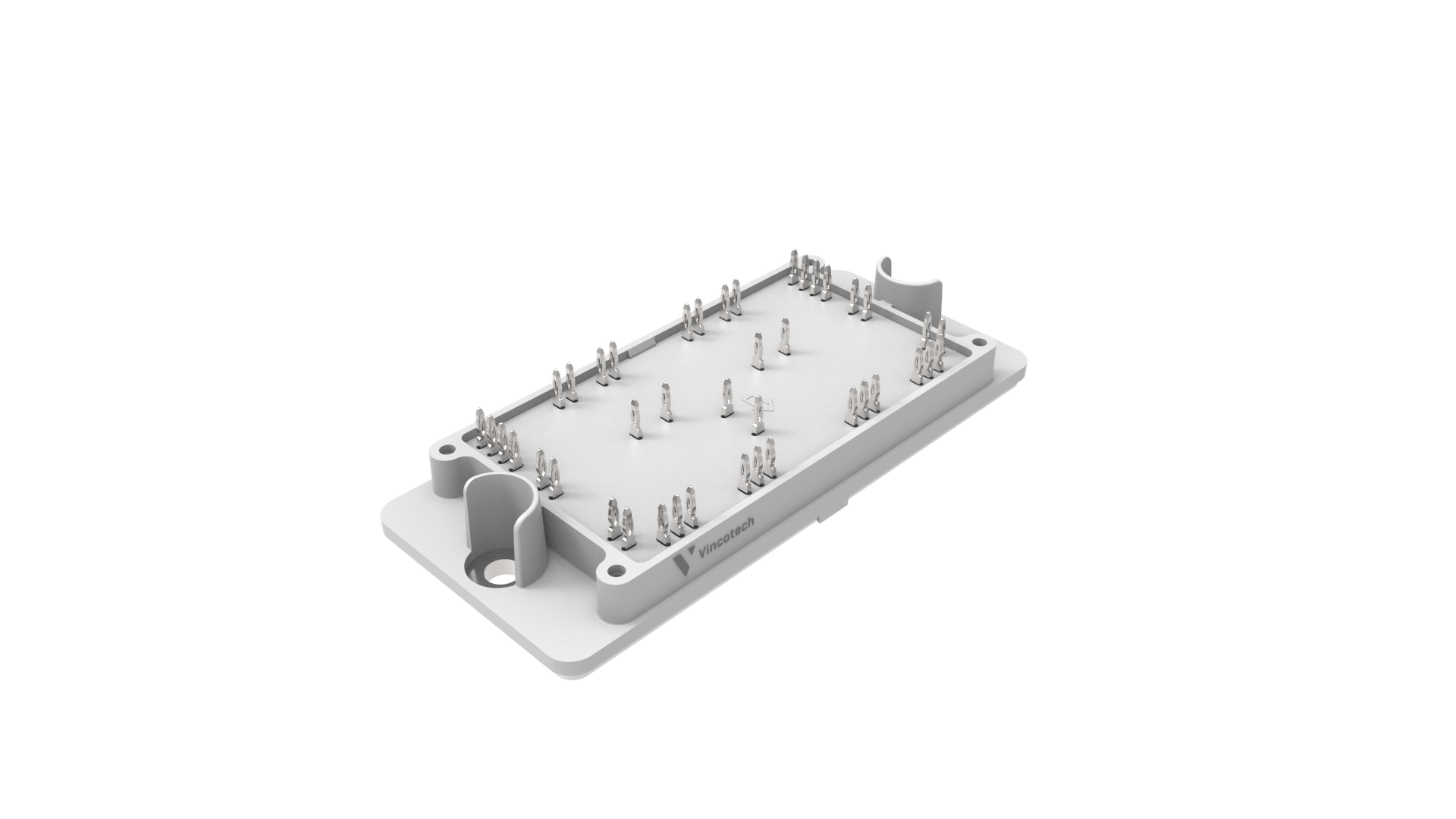

Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 107.2 mm x 47 mm
- Height: 12 mm
- Pin type: Press-fit pin
flow 2
