flowNPC 2

Basic information

• Product line: flowNPC 2
• Product status: Engineering Sample
• Standard packaging quantity (pieces): 36

Electrical characteristics

• Voltage: 950 V
• Current: 400 A

Three-level NPC (I-Type)

• Low side Kelvin Emitter for improved switching performance
• Neutral Point Clamped Topology (I-Type)
• Split topology
• Temperature sensor

Chip & isolation characteristics

IGBT S7

• Low collector emitter saturation voltage
• High speed and smooth switching

Isolation

• Base isolation: Si₃N₄

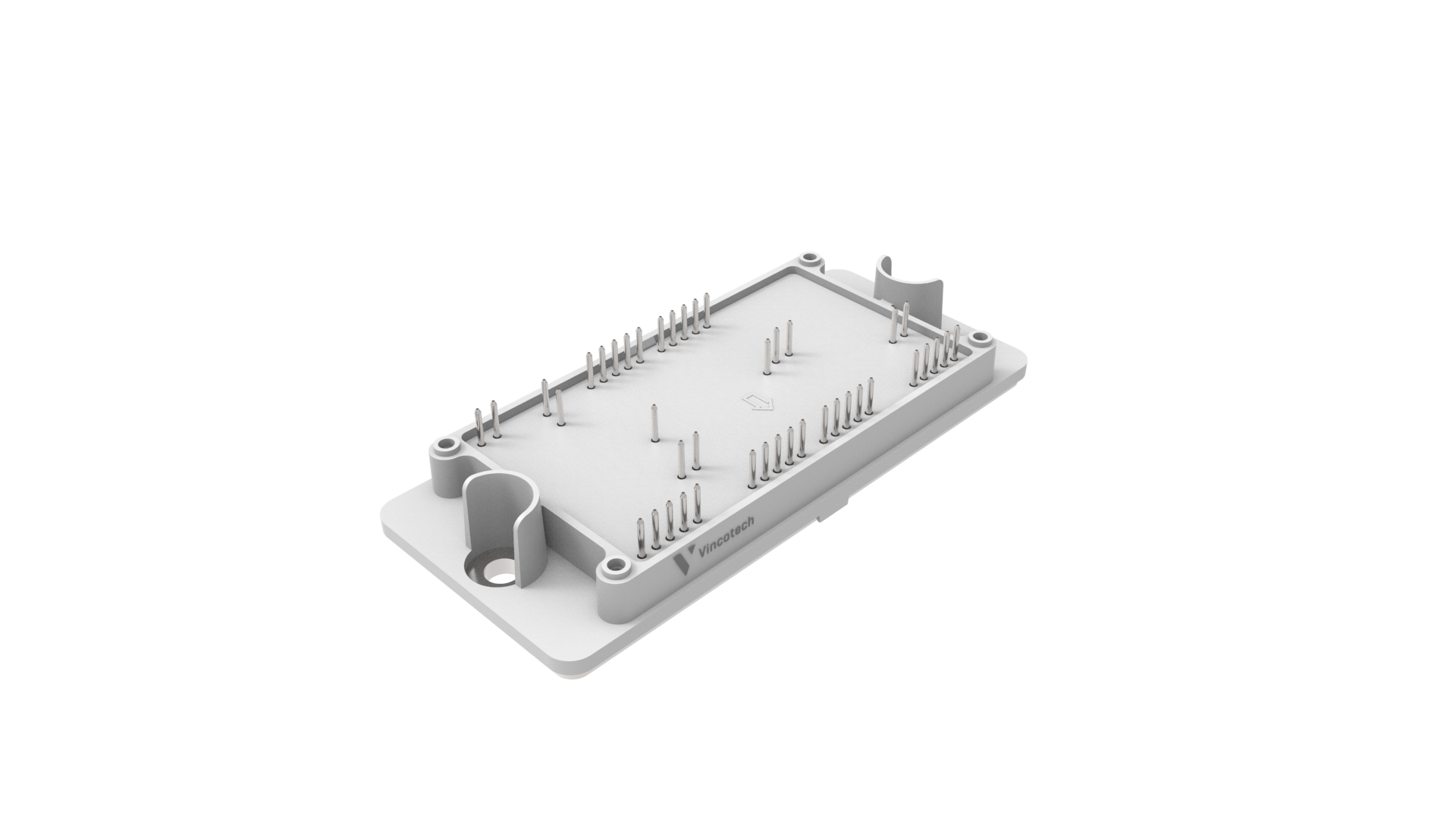

Mechanical & housing characteristics

flow 2

• Mechanical connection to PCB: 4 towers
• Footprint: 107.2 mm x 47 mm
• Height: 13 mm
• Pin type: Solder pin
