flowDUAL E3BP SiC

Basic information

• Product line: flowDUAL E3BP SiC
• Product status: Engineering Sample
• Standard packaging quantity (pieces): 24

Electrical characteristics

• Voltage: 1200 V
• Current: 1020 A
• R(DS)on: 1.4 mOhm

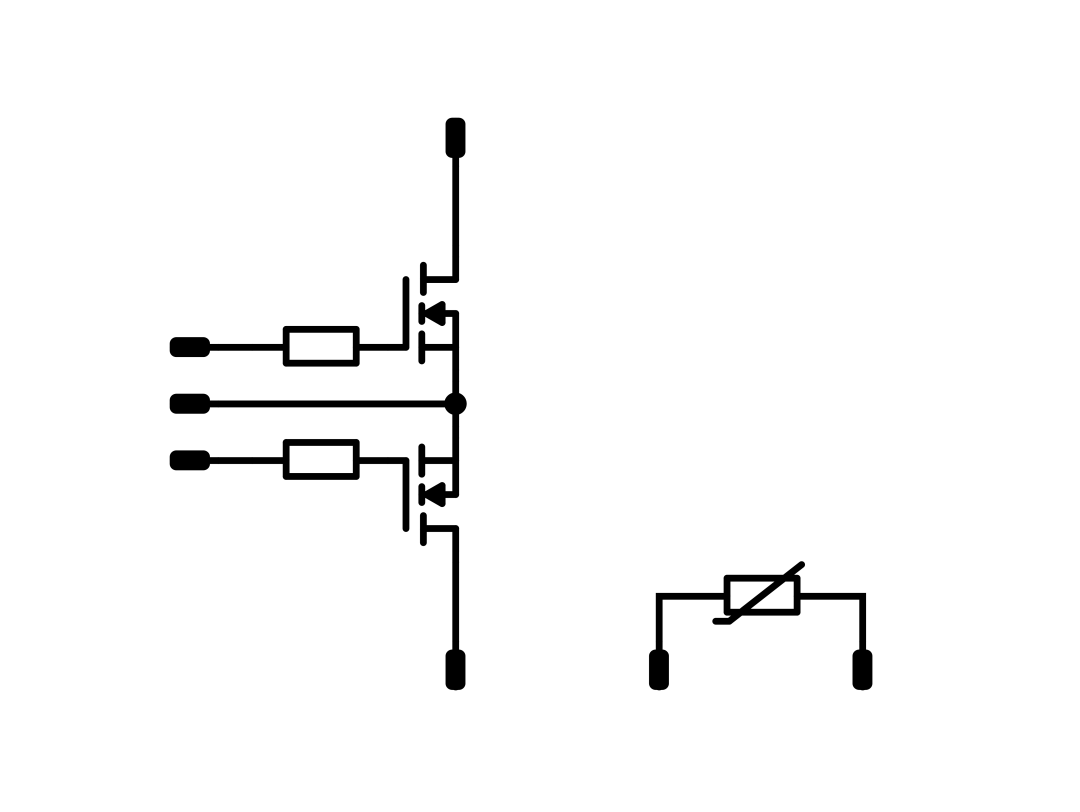

Half-Bridge

• Common emitter point Half Bridge
• SiC MOSFET
• Temperature sensor

Chip & isolation characteristics

SiC MOSFET

• High Blocking Voltage with low drain source on state resistance
• High speed SiC-MOSFET technology
• Resistant to Latch-up

Isolation

• Base isolation: Al₂O₃

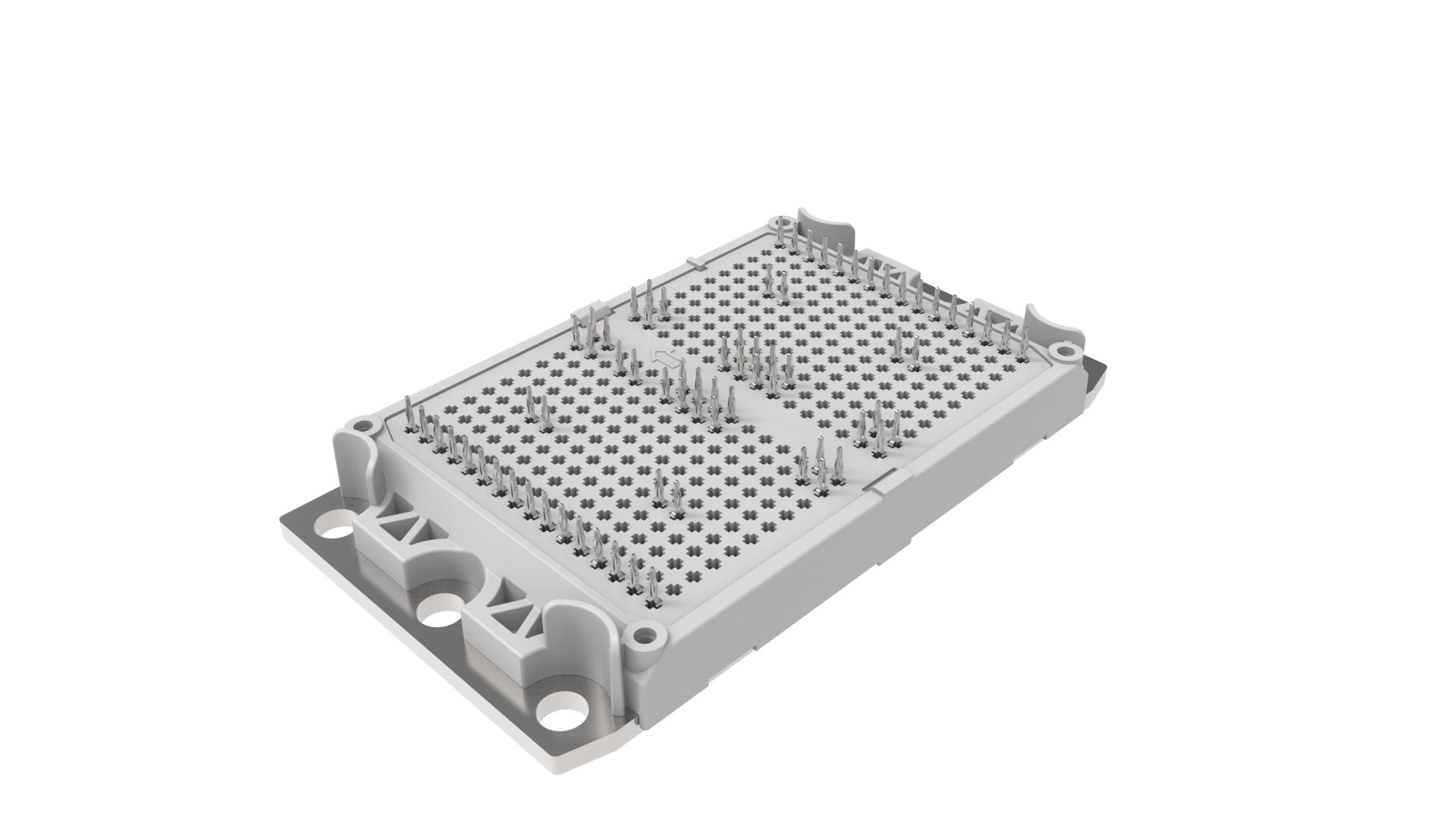

Mechanical & housing characteristics

flow E3BP

• Mechanical connection to PCB: 4 towers
• Footprint: 109.6 mm x 59.7 mm
• Height: 12 mm
• Pin type: Press-fit pin
