flowIPM 1B (CIP)
20-1B06IPB010RC03-P955A65
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowIPM 1B (CIP)
- Product status: Series-Ops
- Standard packaging quantity (pieces): 100
Electrical characteristics
- Voltage: 600 V
- Current: 10 A
- Integrated DC capacitor
- Temperature sensor

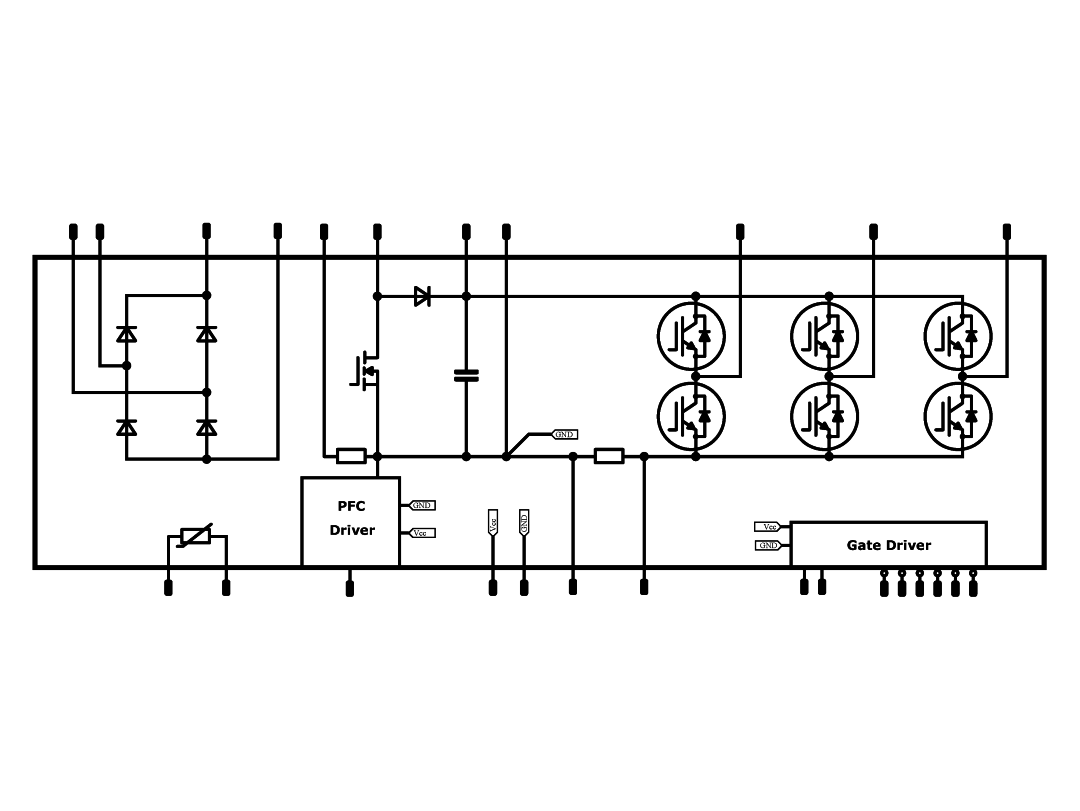

- Converter+PFC+Inverter
- PFC Shunt
- Gate Drive Circuit including complete Bootstrap Circuit
- Inverter Shunt
- PFC Gate Drive
IPM (CIP/PIM+PFC)
Chip & isolation characteristics
- Optimised collector emitter saturation voltage and forward voltage for low conduction losses
- Reverse conductive IGBT technology
- Smooth switching performance leading to low EMI levels
IGBT RC
- Base isolation:
Isolation
Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 72 mm x 36 mm
- Height: 17 mm
- Pin type: Solder pin
flow 1B
