flowMNPC 1

Basic information

• Product line: flowMNPC 1
• Product status: Series
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 1200 V
• Current: 160 A

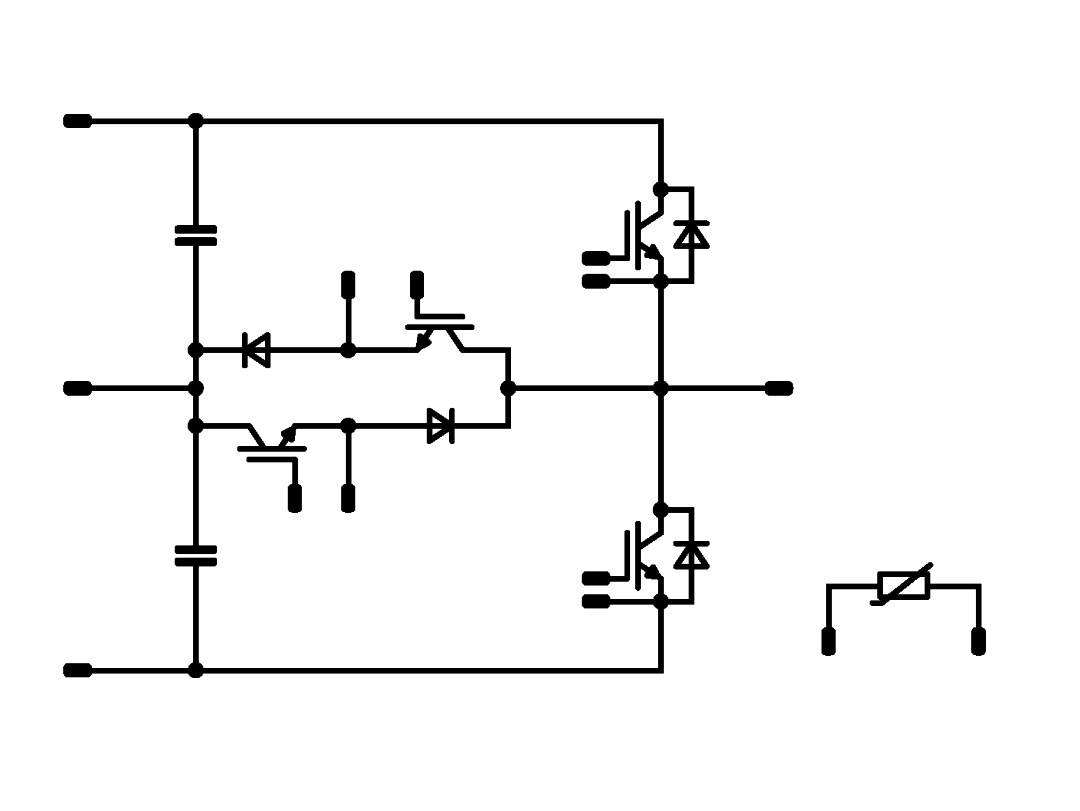

Three-level MNPC (T-Type)

• Kelvin Emitter for improved switching performance
• Mixed Voltage Neutral Point Clamped Topology (T-Type)
• Temperature sensor

Chip & isolation characteristics

IGBT fast

• 5us short circuit withstand time
• High speed switching
• Minimized tail current

Isolation

• Base isolation: Al₂O₃

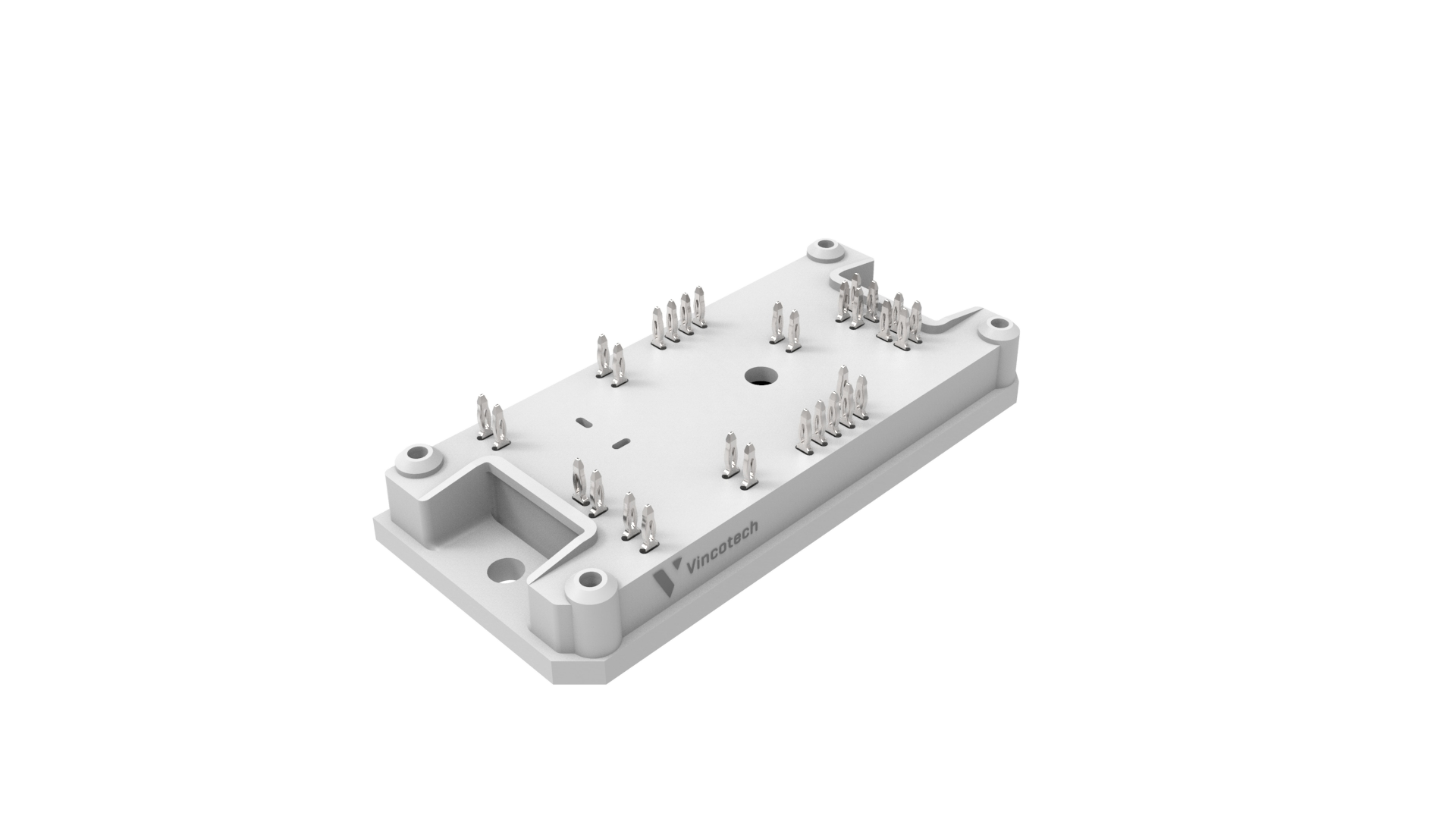

Mechanical & housing characteristics

flow 1

• Mechanical connection to PCB: 4 towers
• Footprint: 82 mm x 37.4 mm
• Height: 12 mm
• Pin type: Press-fit pin
