flowPACK 1 SiC

Basic information

• Product line: flowPACK 1 SiC
• Product status: Series
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 1200 V
• Current: 60 A
• R(DS)on: 20 mOhm

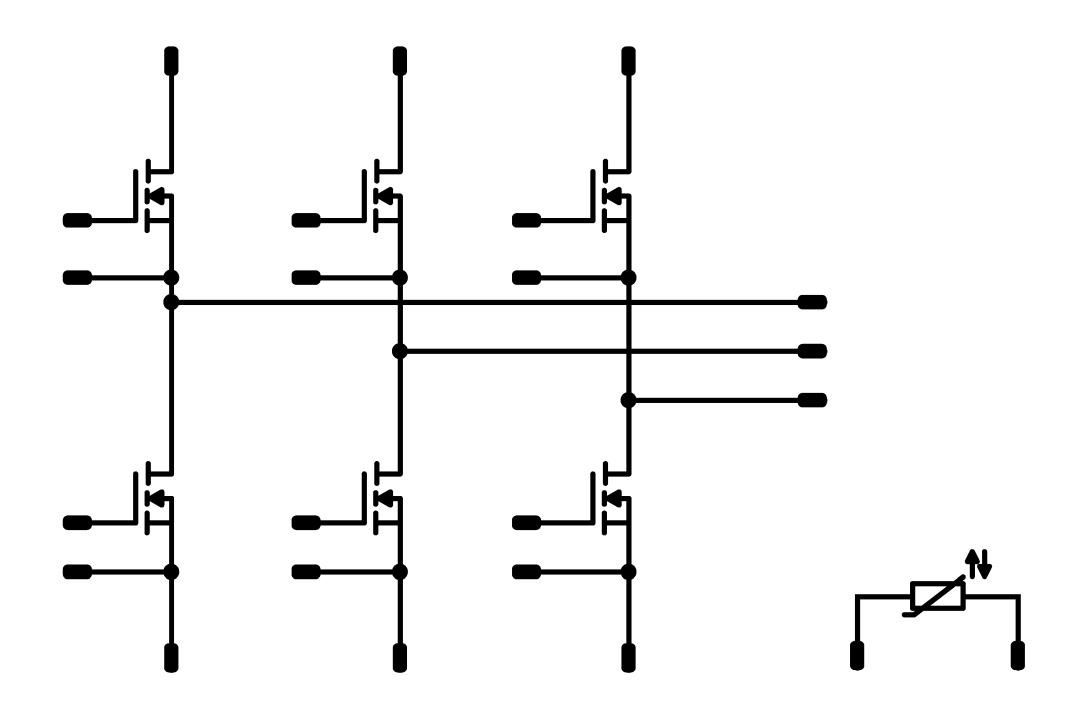

Sixpack

• 3xHalf Bridge
• Open Emitter configuration
• Kelvin Emitter for improved switching performance
• Temperature sensor

Chip & isolation characteristics

SiC MOSFET

• High Blocking Voltage with low drain source on state resistance
• High speed SiC-MOSFET technology
• Resistant to Latch-up

Isolation

• Base isolation: Al₂O₃

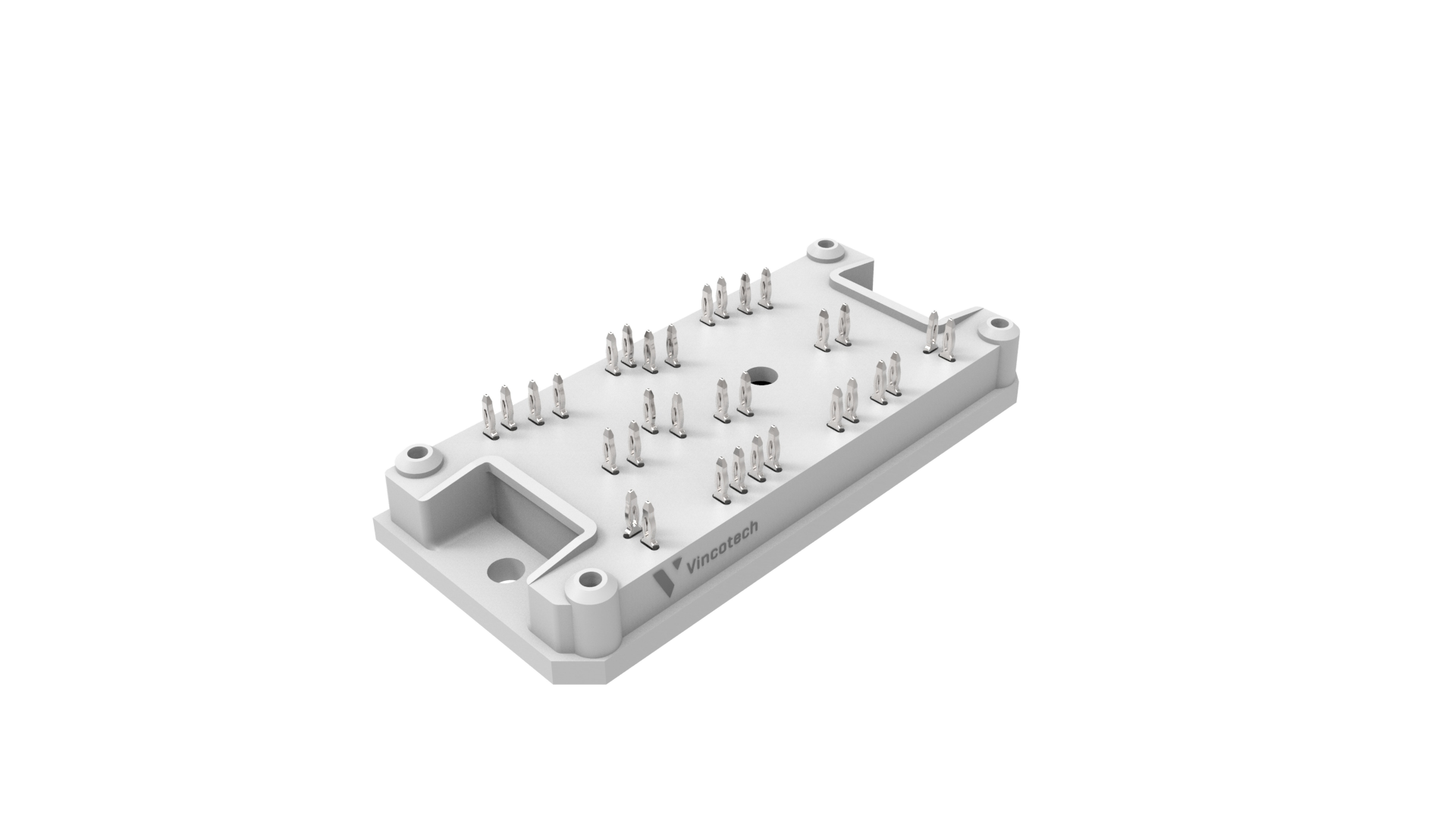

Mechanical & housing characteristics

flow 1

• Mechanical connection to PCB: 4 towers
• Footprint: 82 mm x 37.4 mm
• Height: 12 mm
• Pin type: Press-fit pin
