flowNPC 1

Basic information

• Product line: flowNPC 1
• Product status: Series-Ops
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 650 V
• Current: 150 A

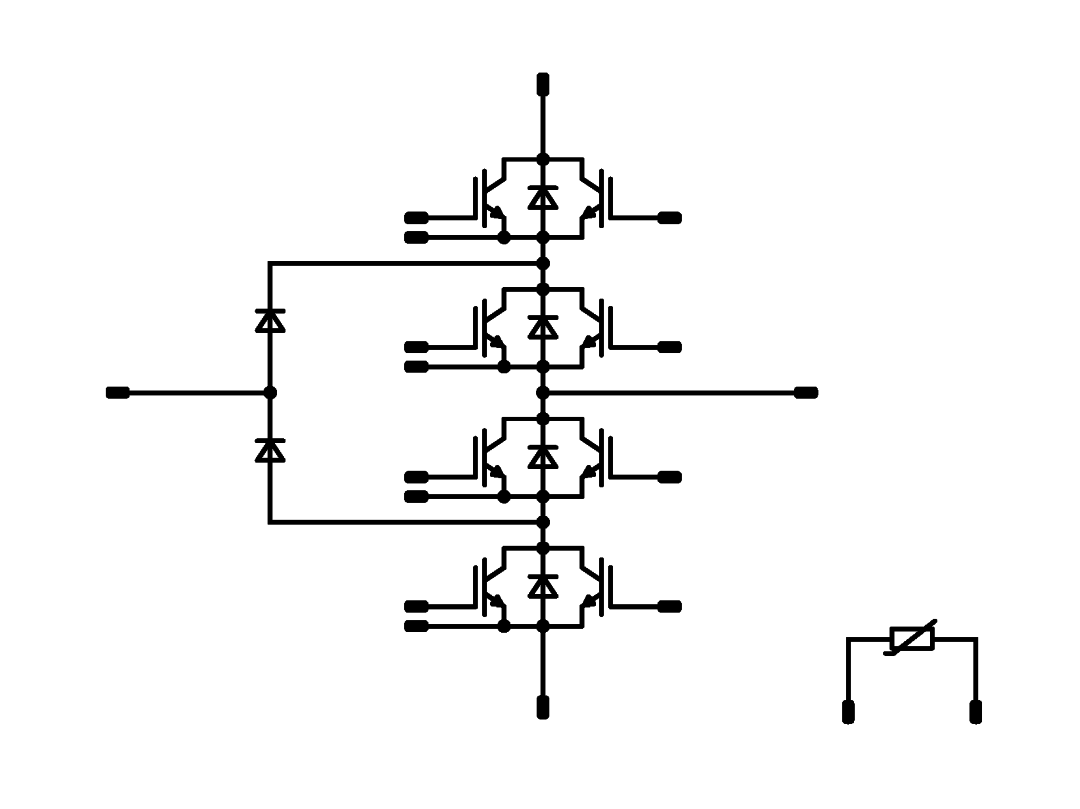

Three-level NPC (I-Type)

• Kelvin Emitter for improved switching performance
• Neutral Point Clamped Topology (I-Type)
• Temperature sensor

Chip & isolation characteristics

IGBT S5

• High speed and smooth switching
• Low gate charge
• Very low collector emitter saturation voltage

Isolation

• Base isolation: Al₂O₃

Mechanical & housing characteristics

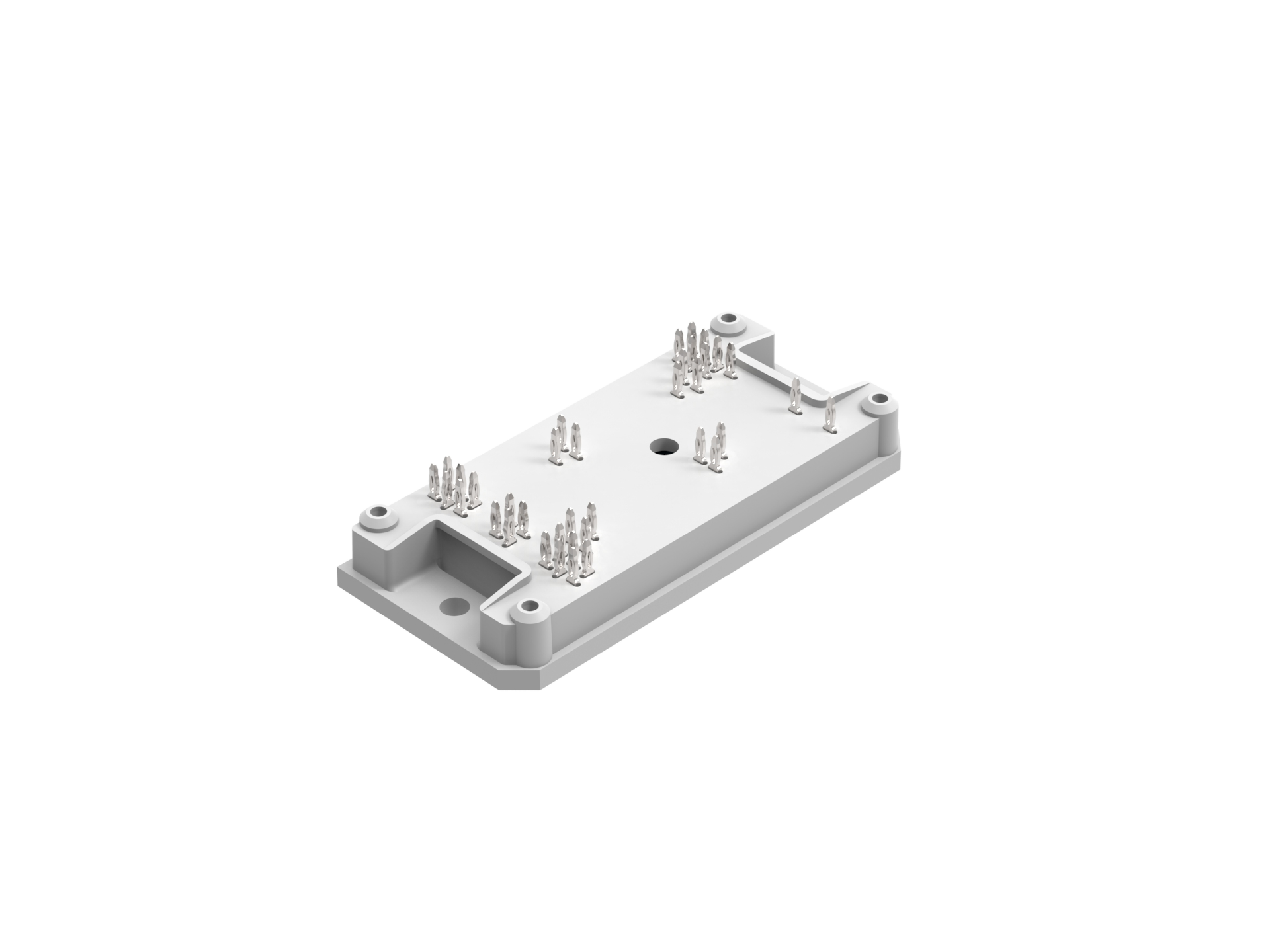

flow 1

• Mechanical connection to PCB: 4 towers
• Footprint: 82 mm x 37.4 mm
• Height: 12 mm
• Pin type: Press-fit pin
