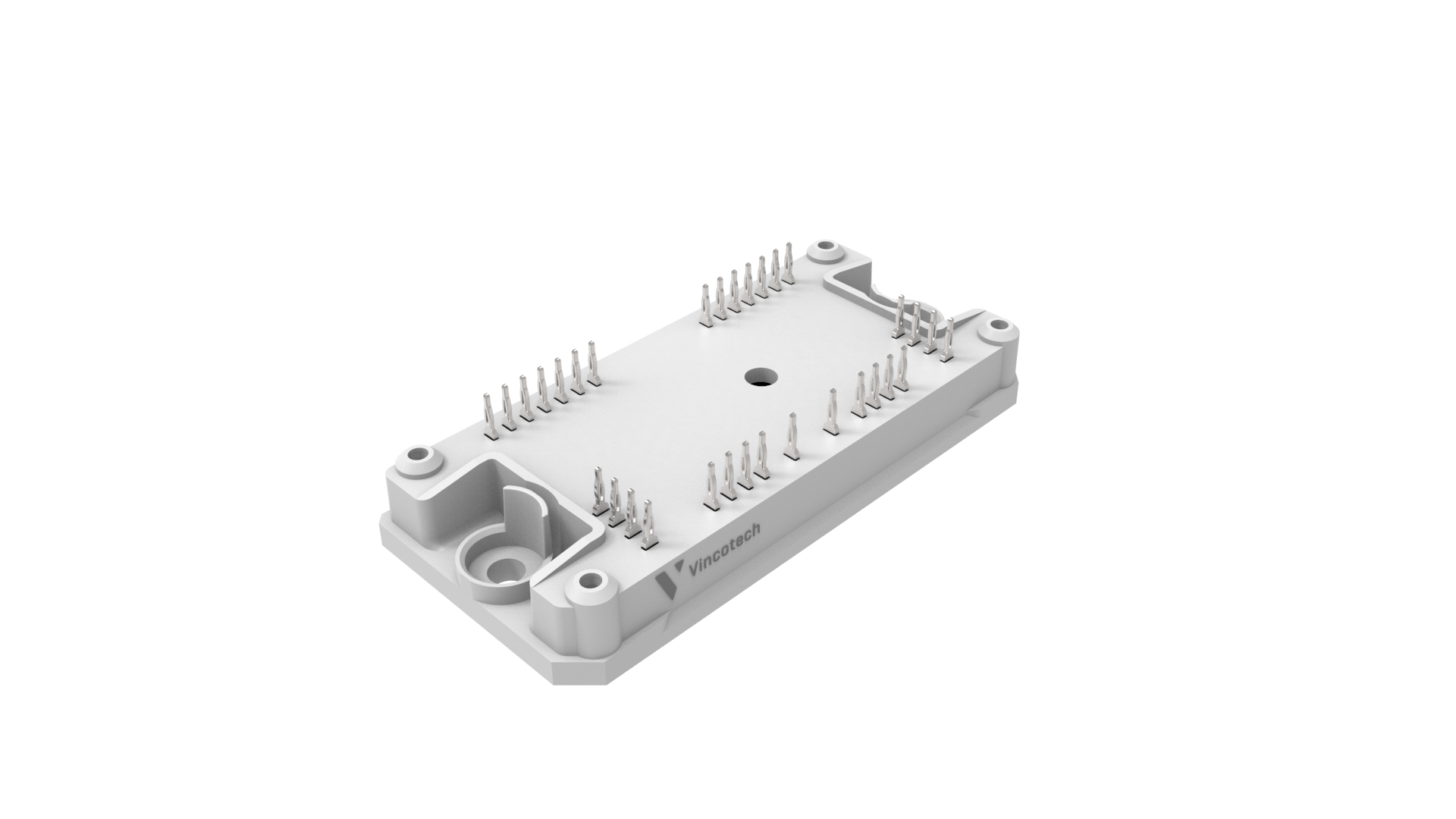

fastPACK 1 SiC
10-PG12ORA080CD-LJ59I18T
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: fastPACK 1 SiC
- Product status: Engineering Sample
- Standard packaging quantity (pieces): 100
Electrical characteristics
- Voltage: 1200 V
- Current: 80 A
- Temperature sensor
- Single-phase non-controlled rectifier
Ultrafast Rectifier
Chip & isolation characteristics
- No diode recovery losses
- Very fast switching
SiC diode
- Base isolation: Al2O3
Isolation
Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 82 mm x 37.4 mm
- Height: 12 mm
- Pin type: Press-fit pin
flow 1
