flowSPFC 0
10-FZ071SA075S501-L525L58
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowSPFC 0
- Product status: Series-Ops
- Standard packaging quantity (pieces): 135
Electrical characteristics
- Voltage: 650 V
- Current: 75 A
- Kelvin Emitter for improved switching performance
- Symmetric Boost PFC
- Temperature sensor
PFC (Three-phase applications)
Chip & isolation characteristics
- High speed and smooth switching
- Low gate charge
- Very low collector emitter saturation voltage
IGBT S5
- Base isolation: Al2O3
Isolation

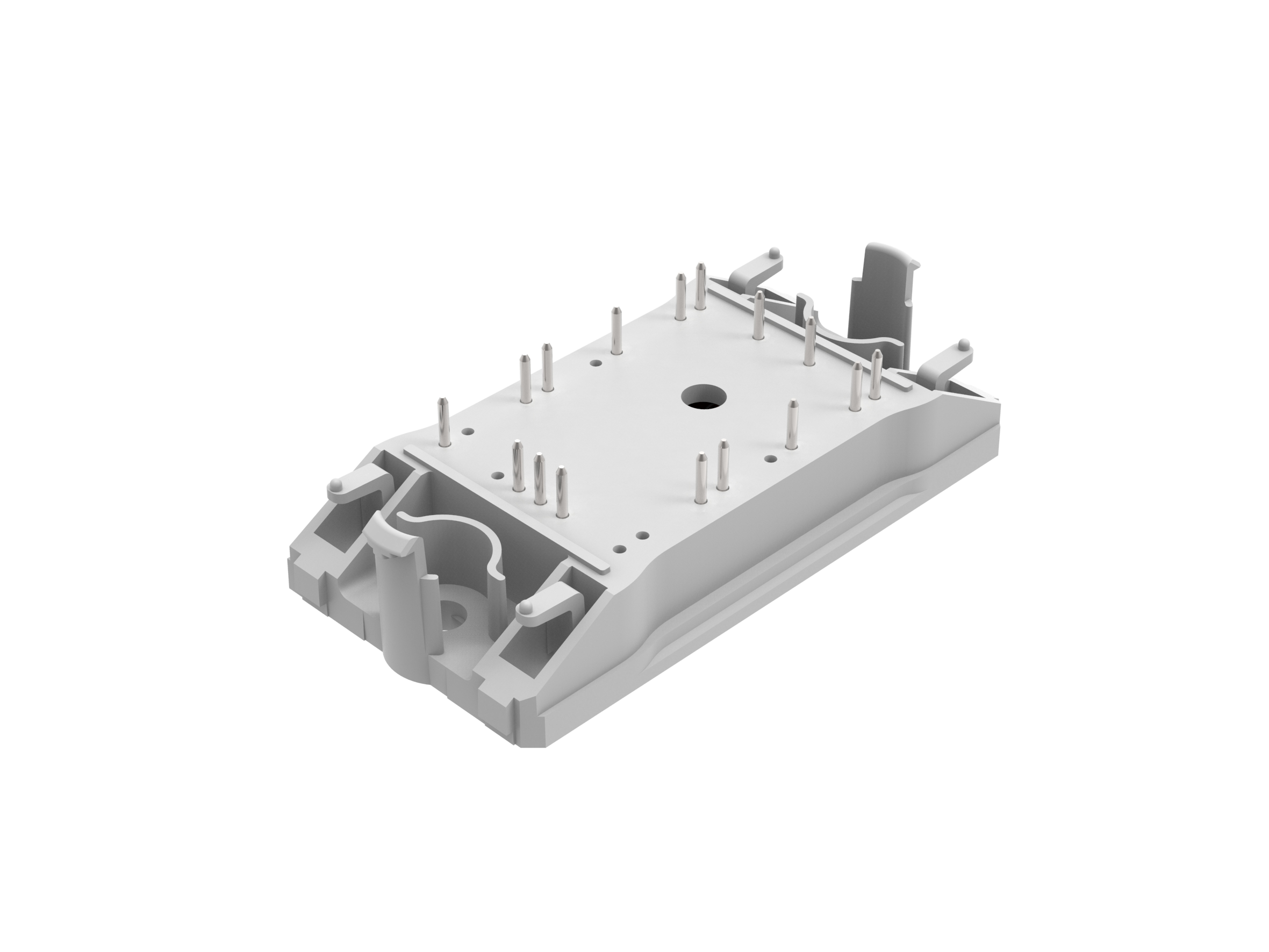

Mechanical & housing characteristics
- Mechanical connection to PCB: 2 clips
- Footprint: 68.4 mm x 32.5 mm
- Height: 12 mm
- Pin type: Solder pin
flow 0
