flowPFC 0 CD
10-FZ062TA099P7-P980D08
Topology Housing Voltage R(DS)on Main chip technology Product status
Product description
Basic information
- Product line: flowPFC 0 CD
- Product status: Series
- Standard packaging quantity (pieces): 135
Electrical characteristics
- Voltage: 600 V
- Current: 15 A
- R(DS)on: 99 mOhm
- Dual Boost PFC
- Half Controlled Converter
- Current sense interface in the collector with low inductive bypass diode
- Integrated Shunt Resistor
- Integrated DC capacitor
- Temperature sensor
PFC (Single-phase applications)
Chip & isolation characteristics
- Commutation rugged
- Easy to use / drive
- Suitable for hard and soft switching
Infineon CoolMOS P7
- Base isolation: Al2O3
Isolation

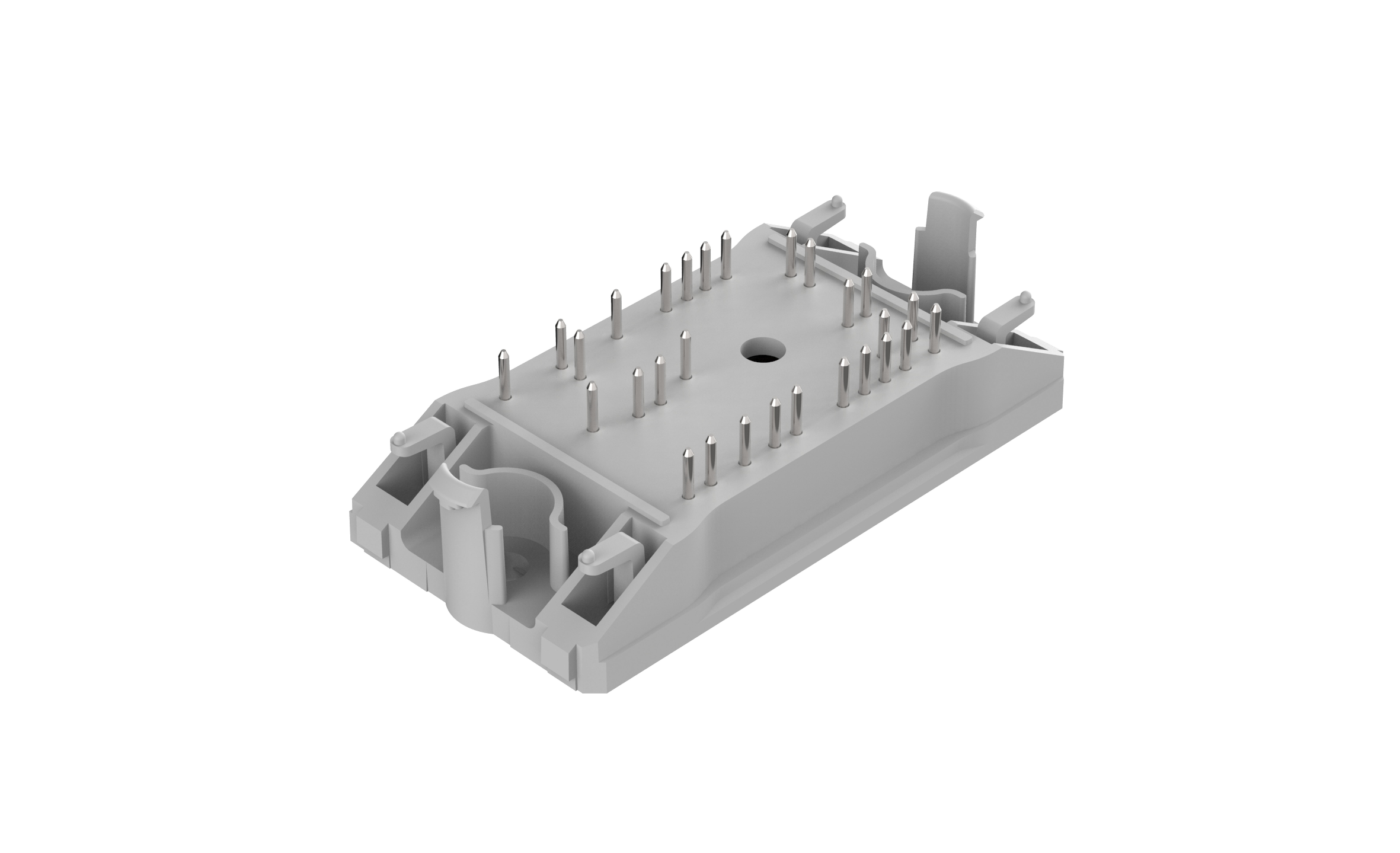

Mechanical & housing characteristics
- Mechanical connection to PCB: 2 clips
- Footprint: 68.4 mm x 32.5 mm
- Height: 12 mm
- Pin type: Solder pin
flow 0
