flowPFC 0
10-FZ062TA080P7-P980D78
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowPFC 0
- Product status: Series
- Standard packaging quantity (pieces): 135
Electrical characteristics
- Voltage: 600 V
- Current: 20 A

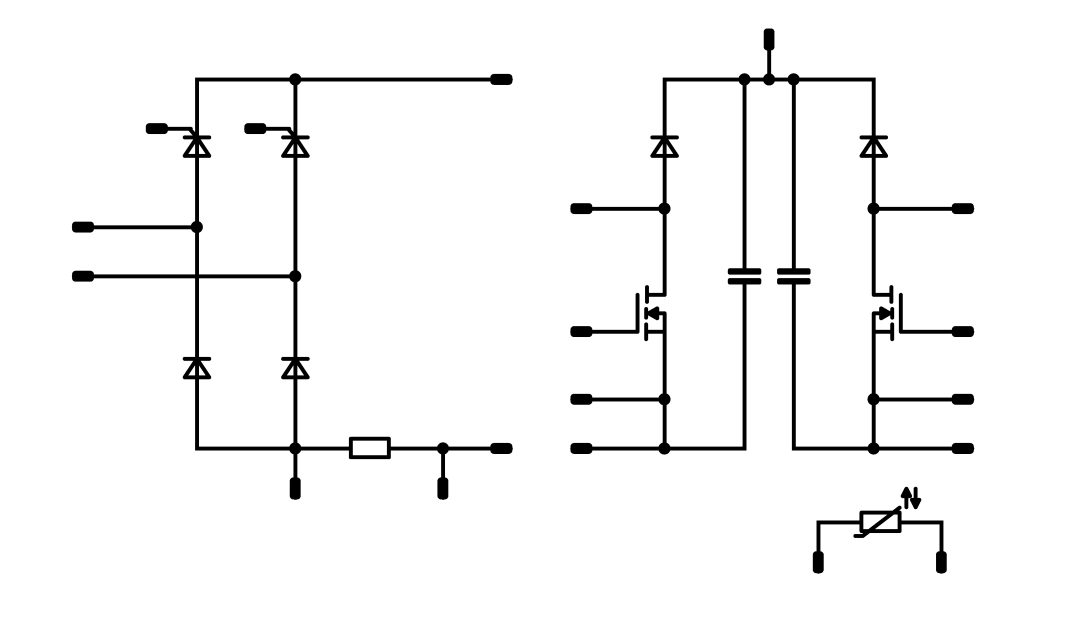

- Dual Boost PFC
- Half Controlled Converter
- Integrated Shunt Resistor
- Integrated DC capacitor
- Temperature sensor
PFC (Single-phase applications)
Chip & isolation characteristics
- Commutation rugged
- Easy to use / drive
- Suitable for hard and soft switching
Infineon CoolMOS P7
- Base isolation: Al2O3
Isolation

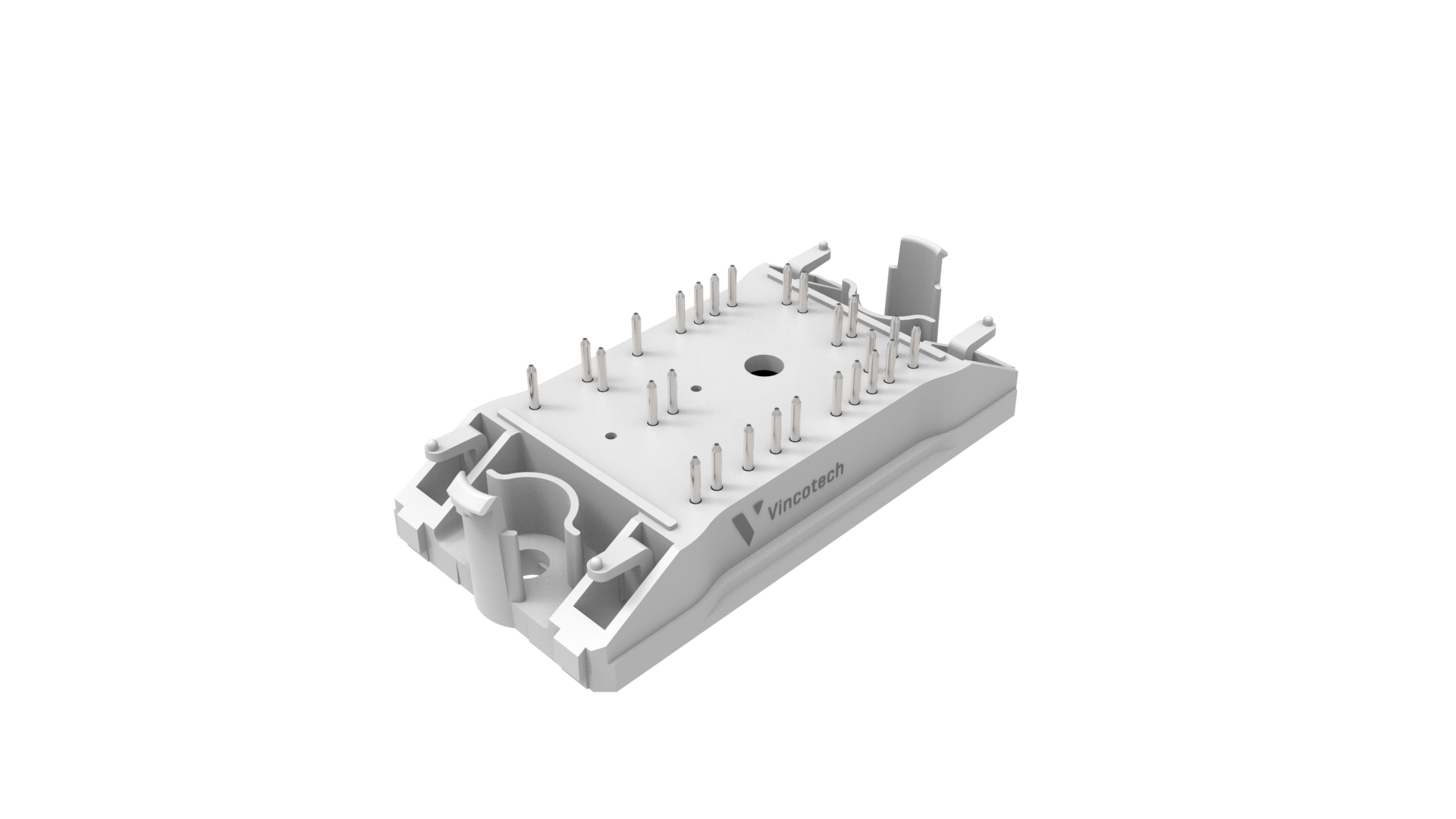

Mechanical & housing characteristics
- Mechanical connection to PCB: 2 clips
- Footprint: 68.4 mm x 32.5 mm
- Height: 12 mm
- Pin type: Solder pin
flow 0
