flowBOOST 1 dual SiC

Basic information

• Product line: flowBOOST 1 dual SiC
• Product status: Series
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 1200 V
• Current: 35 A
• R(DS)on: 40 mOhm

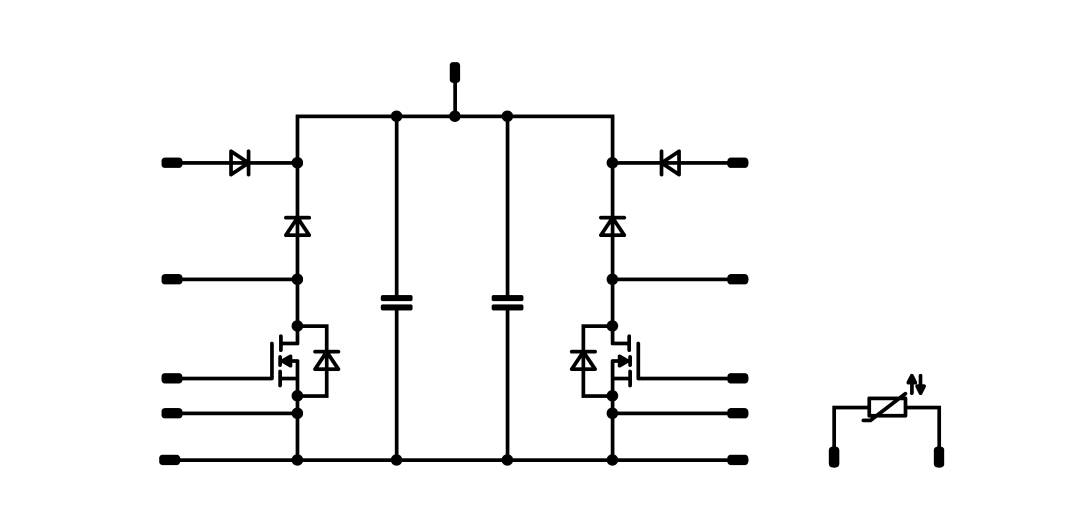

Booster

• Kelvin Emitter for improved switching performance
• Dual Booster
• Bypass Diode
• Integrated DC capacitor
• Temperature sensor

Chip & isolation characteristics

SiC MOSFET

• Easy paralleling
• Low on-resistance
• Fast switching speed
• Fast recovery body diode

Isolation

• Base isolation: Al₂O₃

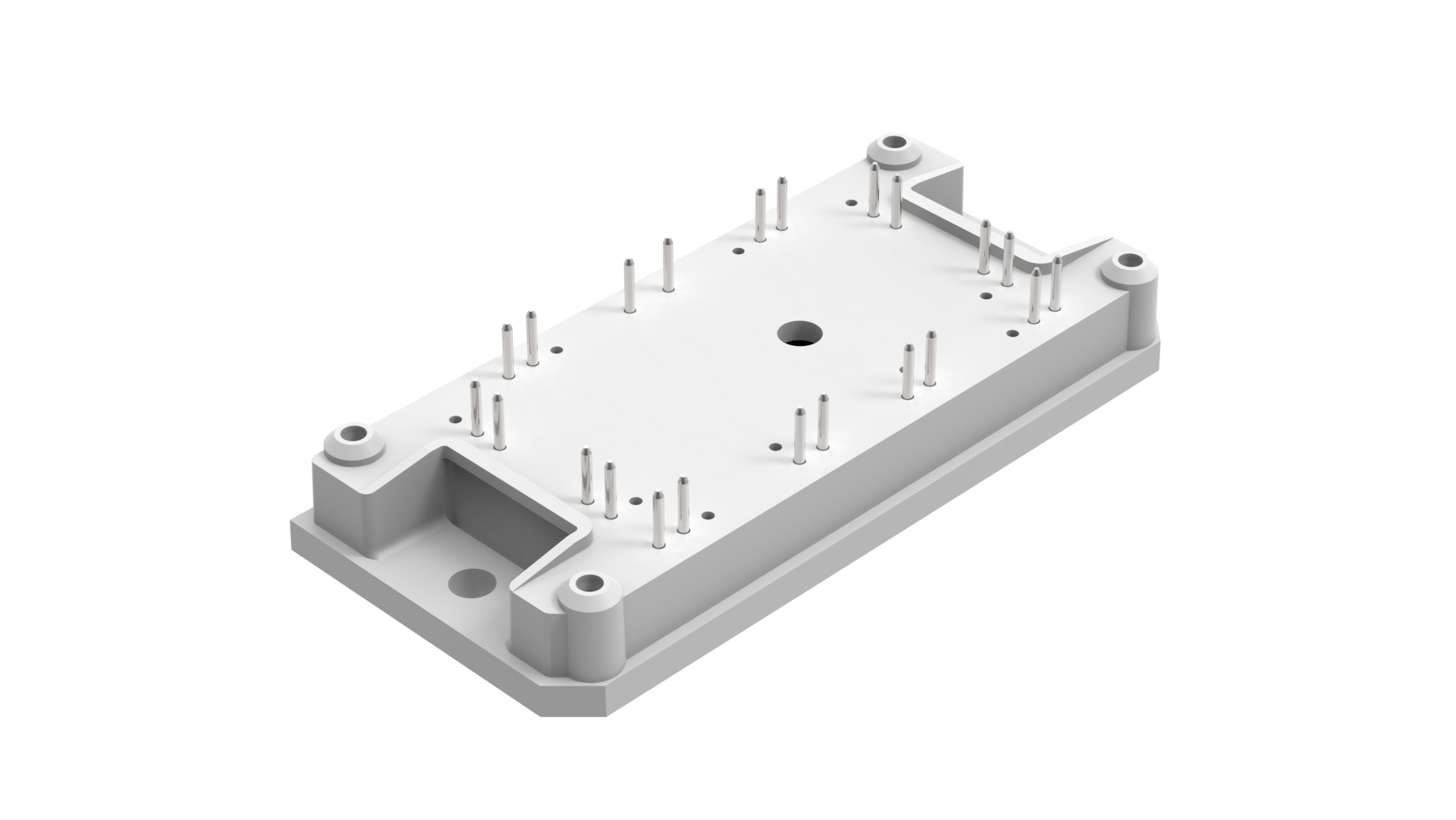

Mechanical & housing characteristics

flow 1

• Mechanical connection to PCB: 4 towers
• Footprint: 82 mm x 37.4 mm
• Height: 12 mm
• Pin type: Solder pin
