flowPACK 1 SiC

Basic information

• Product line: flowPACK 1 SiC
• Product status: Series
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 750 V
• Current: 45 A
• R(DS)on: 22.5 mOhm

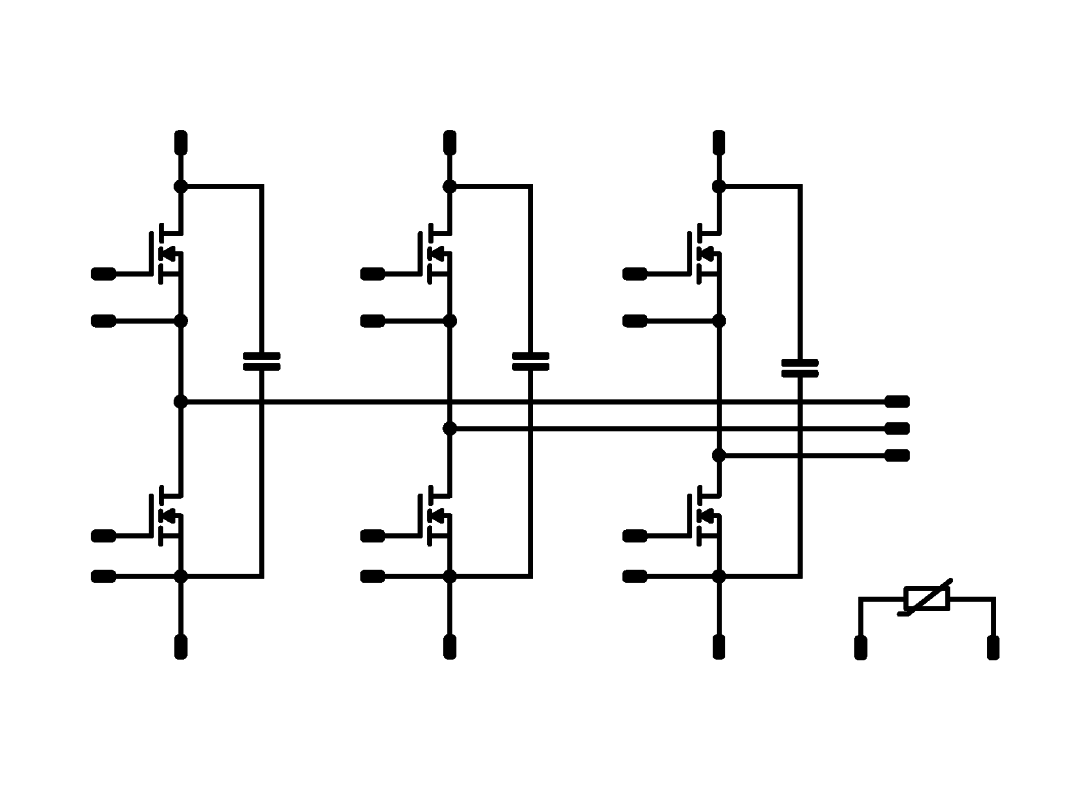

Sixpack

• 3xHalf Bridge
• 3xIntegrated DC capacitor
• Kelvin Emitter for improved switching performance
• MOSFET
• Open Emitter configuration
• Temperature sensor

Chip & isolation characteristics

SiC MOSFET

• Easy paralleling
• Low on-resistance
• Fast switching speed
• Fast recovery body diode

Isolation

• Base isolation: Al₂O₃

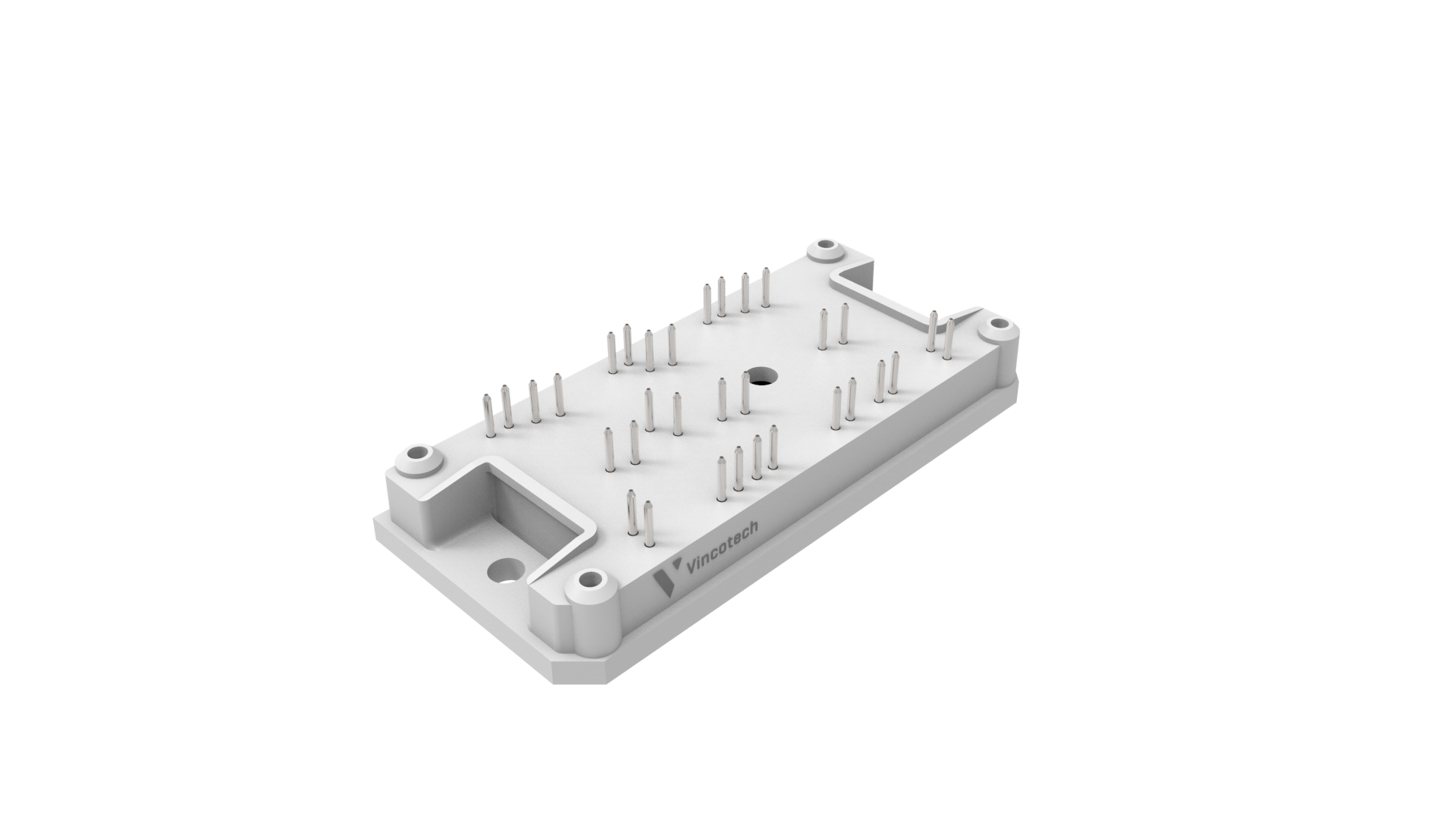

Mechanical & housing characteristics

flow 1

• Mechanical connection to PCB: 4 towers
• Footprint: 82 mm x 37.4 mm
• Height: 12 mm
• Pin type: Solder pin
