flowSOL 1 BI (TL)

Basic information

• Product line: flowSOL 1 BI (TL)
• Product status: Phase Out
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 650 V
• Current: 50 A

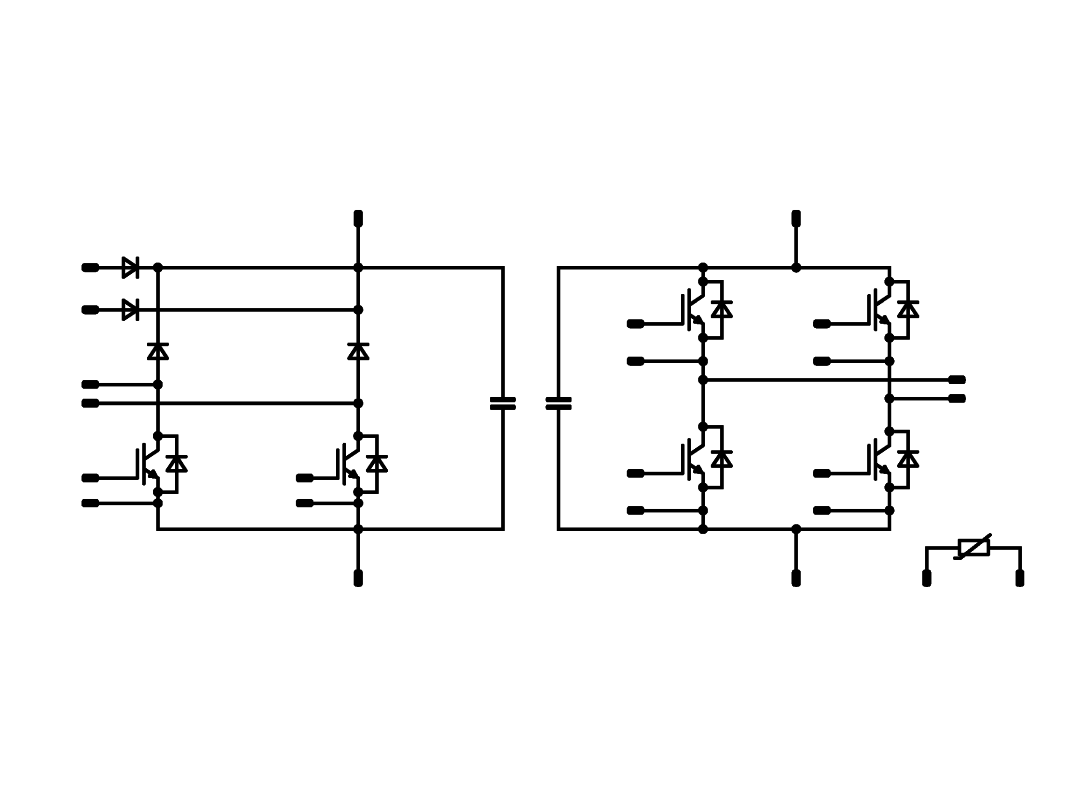

Single-phase Inverter

• Kelvin Emitter for improved switching performance
• Integrated DC capacitor
• Temperature sensor
• Dual Booster + H-Bridge

Chip & isolation characteristics

IGBT H5

• High efficiency in hard switching and resonant topologies
• High speed switching
• Low gate charge

Isolation

• Base isolation: Al₂O₃

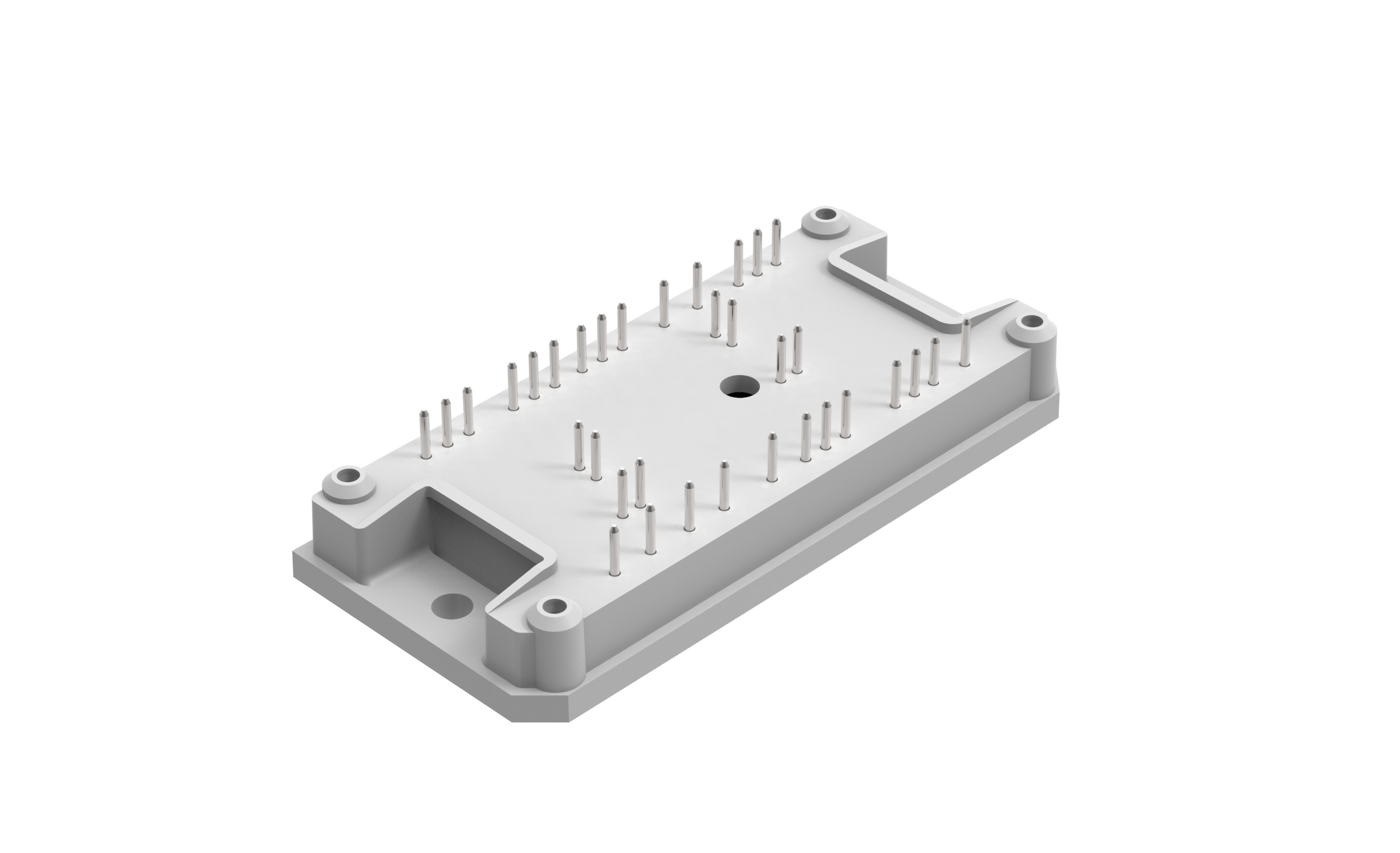

Mechanical & housing characteristics

flow 1

• Mechanical connection to PCB: 4 towers
• Footprint: 82 mm x 37.4 mm
• Height: 12 mm
• Pin type: Solder pin
