fastPACK 0
10-FX074PA075SM-L625F07
Product description
Basic information
- Product line: fastPACK 0
- Product status: Series
- Standard packaging quantity (pieces): 135
Electrical characteristics
- Voltage: 650 V
- Current: 75 A
- Integrated DC capacitor
- Kelvin Emitter for improved switching performance
- Open Emitter configuration
- Temperature sensor

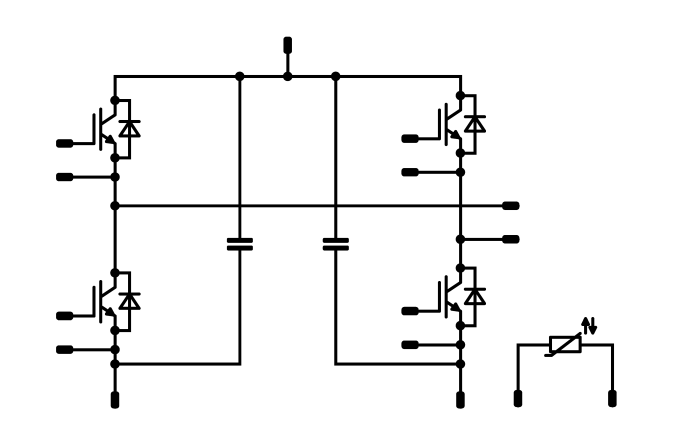

H-Bridge
Chip & isolation characteristics
- High efficiency in hard switching and resonant topologies
- High speed switching
- Low gate charge
IGBT H5
- Base isolation: Al2O3
Isolation

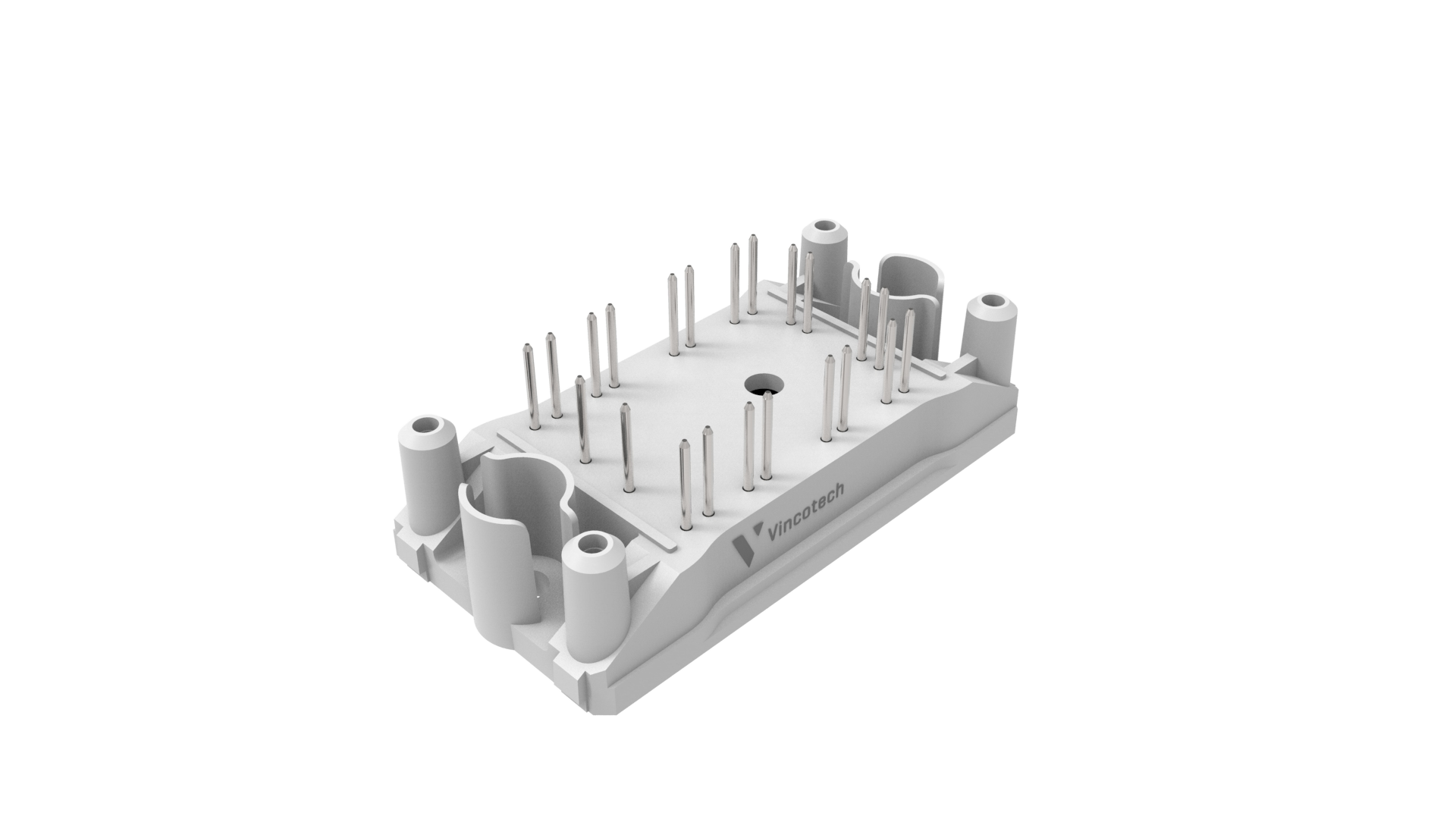

Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 66 mm x 32.5 mm
- Height: 17 mm
- Pin type: Solder pin
flow 0
