flowCON E1
10-EZ166BA050MS03-PS10G28T
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowCON E1
- Product status: Engineering Sample
- Standard packaging quantity (pieces): 100
Electrical characteristics
- Voltage: 1600 V
- Current: 50 A
- Temperature sensor
- Brake Chopper
- Three-phase Rectifier
- SiC

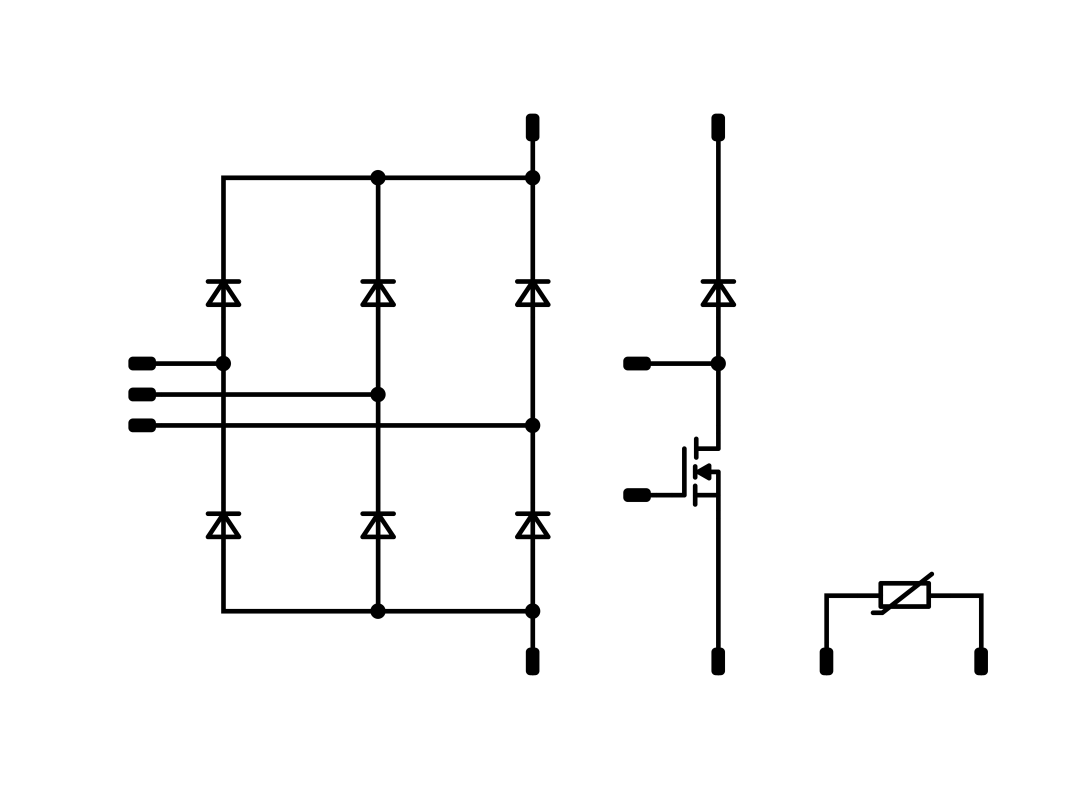

Rectifier (+Brake)
Chip & isolation characteristics
- High inrush current capability
Rectifier
- Base isolation: Al2O3
Isolation

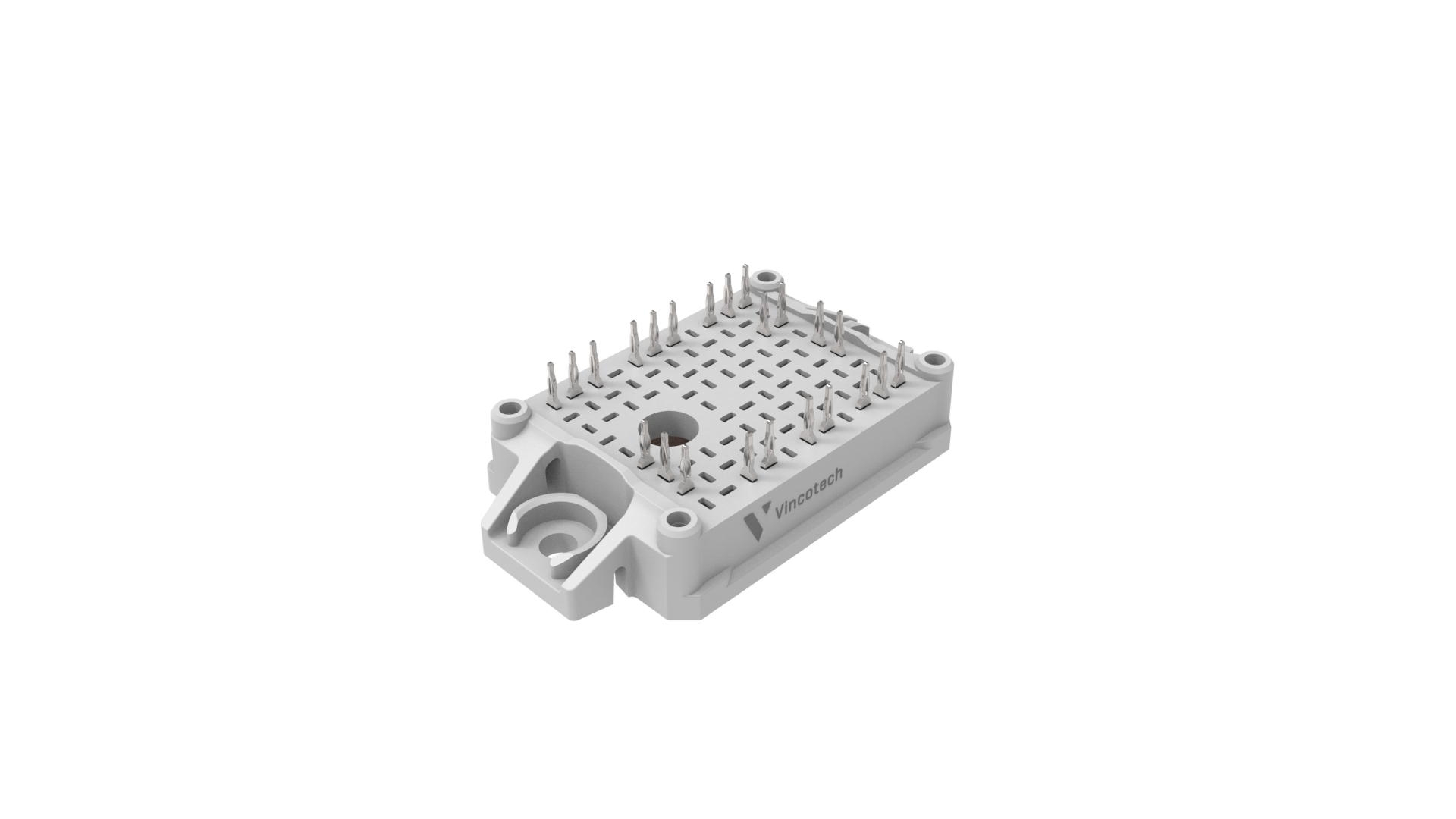

Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 62.8 mm x 34.8 mm
- Height: 12 mm
- Pin type: Press-fit pin
flow E1
