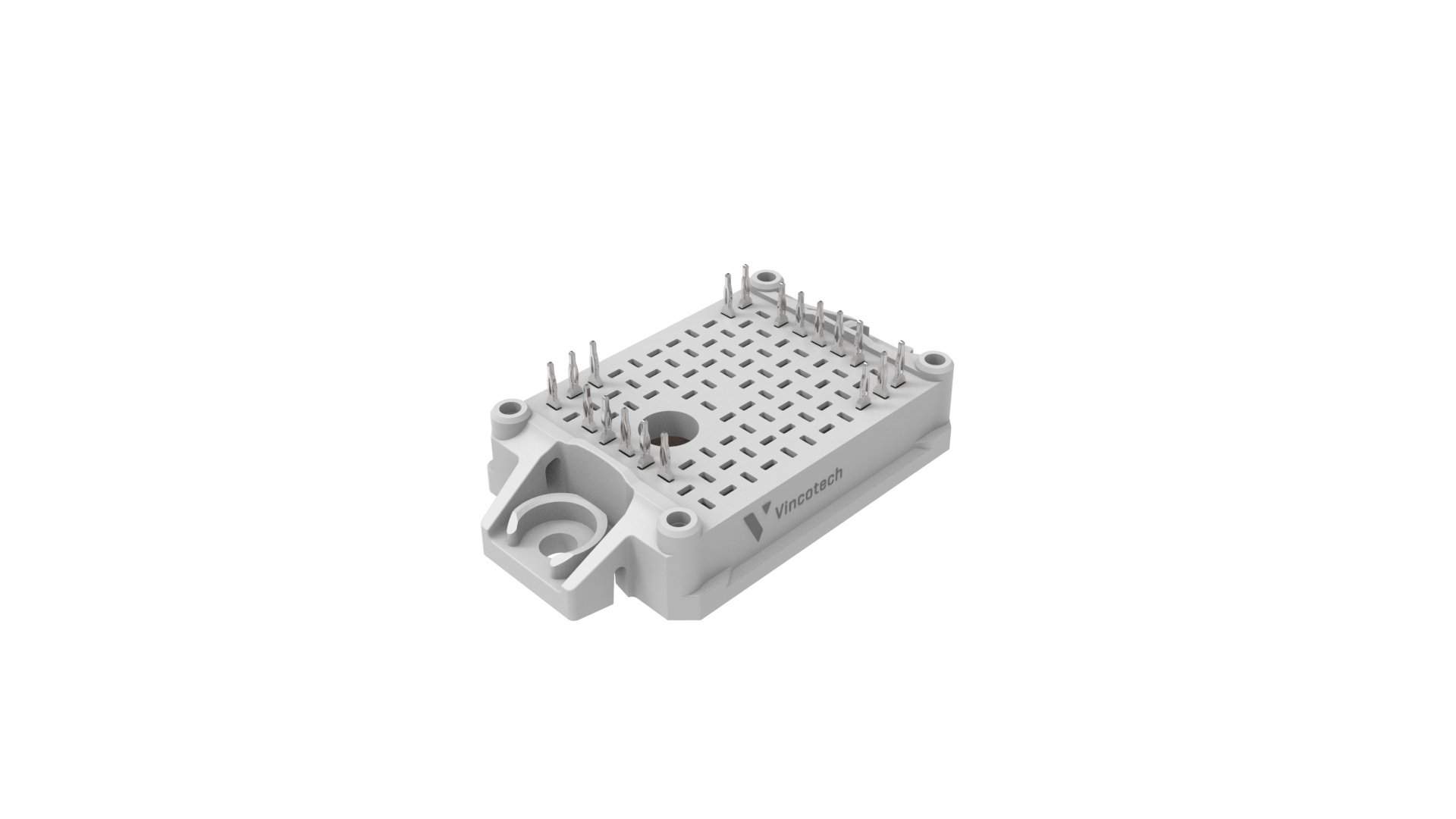

flowDUAL E1
10-EZ122PC100M7-PL39F78T
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowDUAL E1
- Product status: Series
- Standard packaging quantity (pieces): 100
Electrical characteristics
- Voltage: 1200 V
- Current: 100 A
- Common emitter point Half Bridge
- Temperature sensor
Half-Bridge
Chip & isolation characteristics
- Easy paralleling
- Low turn-off losses
- Low collector emitter saturation voltage
- Positive temperature coefficient
- Short tail current
- Switching optimized for EMC
IGBT M7
- Base isolation: Al2O3
Isolation
Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 62.8 mm x 34.8 mm
- Height: 12 mm
- Pin type: Press-fit pin
flow E1
