flowDUAL E1 SiC

Basic information

• Product line: flowDUAL E1 SiC
• Product status: Promotion
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 1200 V
• Current: 70 A
• R(DS)on: 21 mOhm

Half-Bridge

• Temperature sensor
• Half Bridge

Chip & isolation characteristics

SiC MOSFET

• Fast intrinsic diode with low reverse recovery
• High blocking voltage with low on-resistance
• High speed switching with low capacitance

Isolation

• Base isolation: Al₂O₃

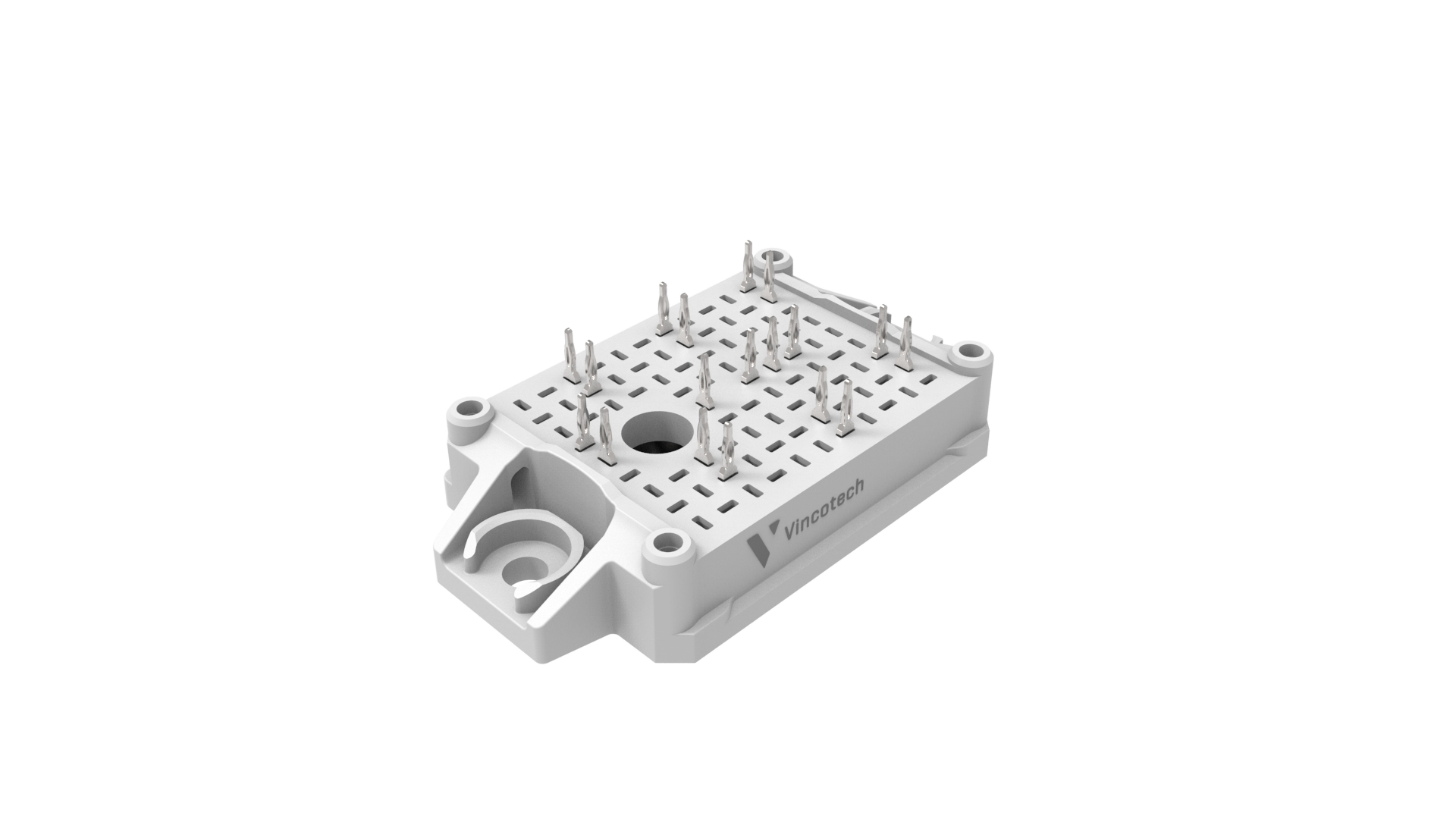

Mechanical & housing characteristics

flow E1

• Mechanical connection to PCB: 4 towers
• Footprint: 62.8 mm x 34.8 mm
• Height: 12 mm
• Pin type: Press-fit pin
