flow3xNPFC E1
10-E107L3A045ME-PM33L18Z
Topology Housing Voltage R(DS)on Main chip technology Product status
Product description
Basic information
- Product line: flow3xNPFC E1
- Product status: Engineering Sample
- Standard packaging quantity (pieces): 100
Electrical characteristics
- Voltage: 650 V
- Current: 50 A
- R(DS)on: 45 mOhm
- 3xNeutral Boost PFC
- On-board Capacitors
- Temperature sensor
PFC (Three-phase applications)
Chip & isolation characteristics
- High Blocking Voltage with low drain source on state resistance
- High speed SiC-MOSFET technology
- Resistant to Latch-up
SiC MOSFET
- Base isolation: Al2O3
Isolation

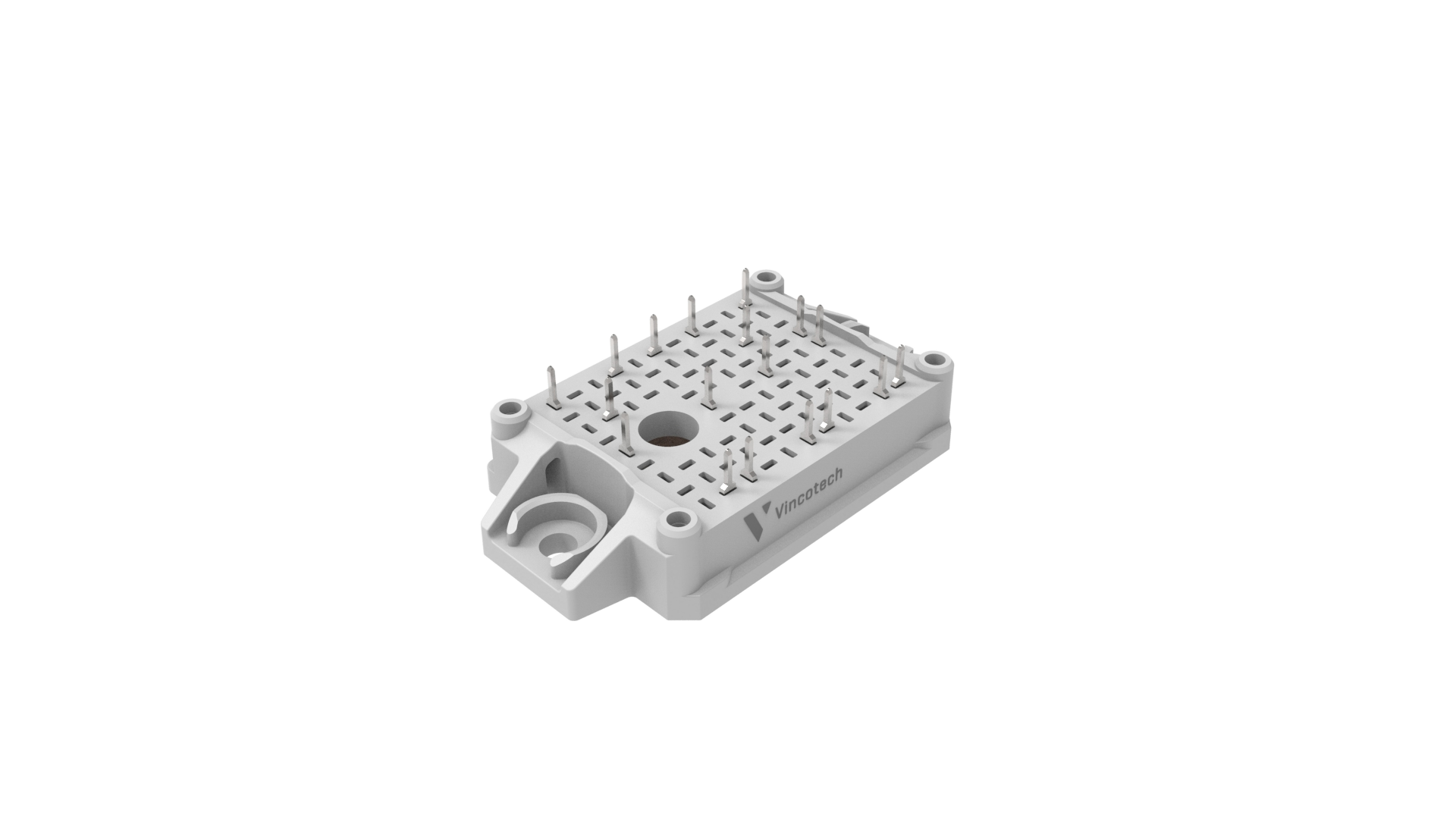

Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 62.8 mm x 34.8 mm
- Height: 12 mm
- Pin type: Solder pin
flow E1
