flowPIM E1 + PFC

Basic information

• Product line: flowPIM E1 + PFC
• Product status: Engineering Sample
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 650 V
• Current: 20 A

PFC (Three-phase applications)

• Open Emitter configuration
• Temperature sensor
• Converter+PFC+Inverter

Chip & isolation characteristics

IGBT7

• Easy paralleling
• Low collector emitter saturation voltage
• Low turn-off losses
• Positive temperature coefficient

Isolation

• Base isolation: Al₂O₃

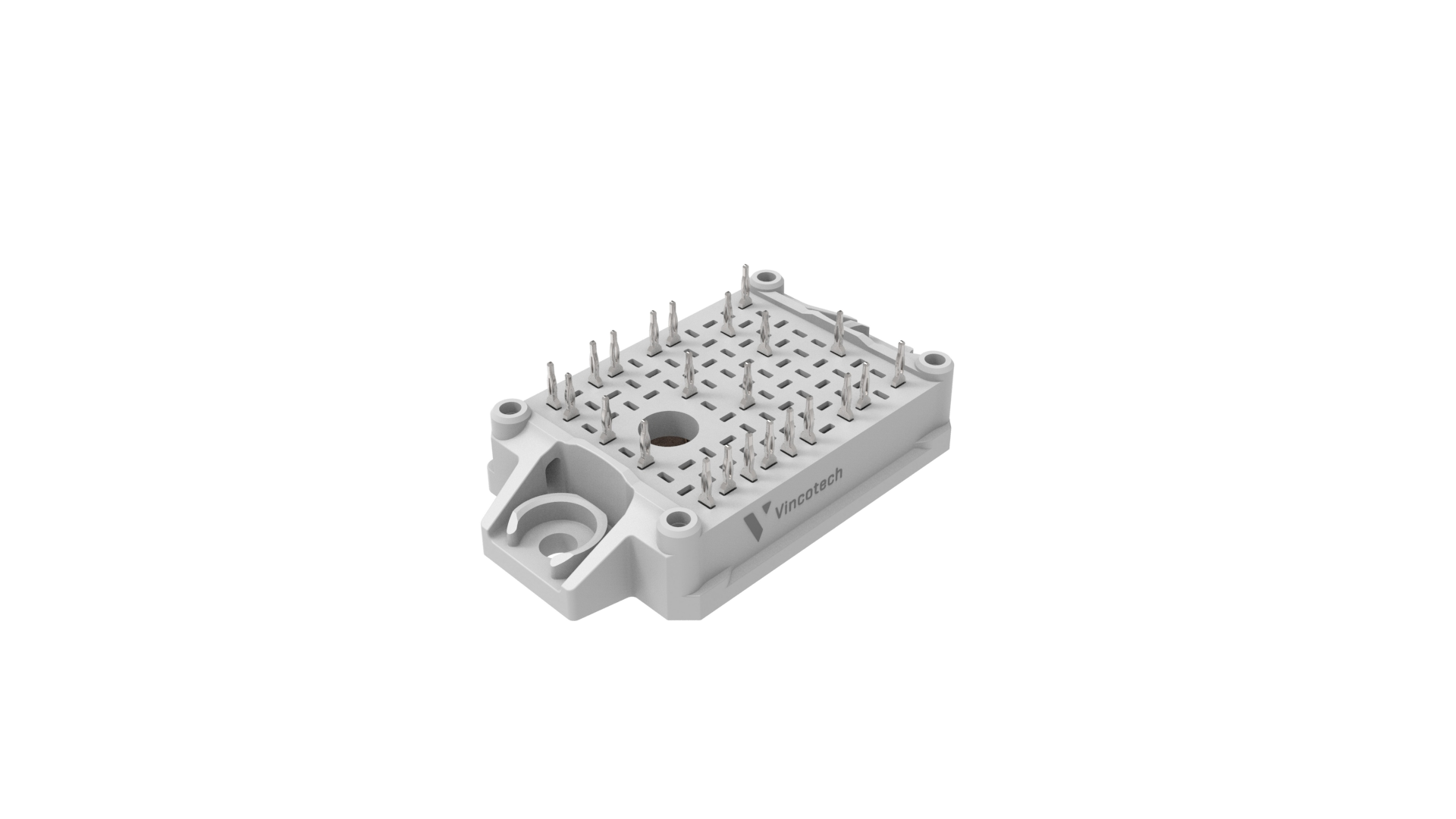

Mechanical & housing characteristics

flow E1

• Mechanical connection to PCB: 4 towers
• Footprint: 62.8 mm x 34.8 mm
• Height: 12 mm
• Pin type: Press-fit pin
